OEM Parking camera Citroen, BC CIT-02

| BC CIT-02

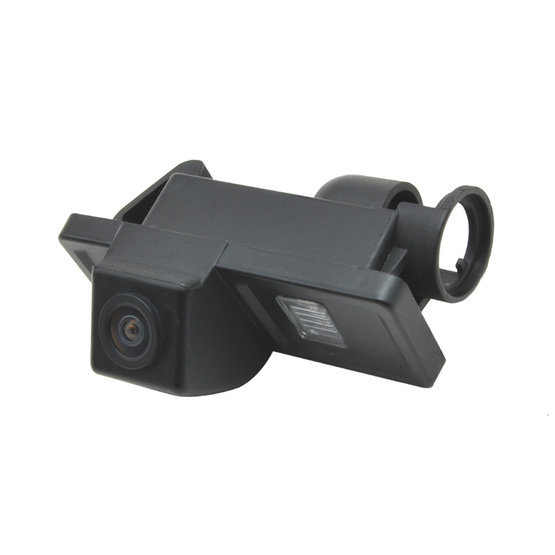

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.

Suitable for the car models:

  • CITROEN C2
  • CITROEN C4
  • CITROEN C5 (2008->)
  • CITROEN C6
  • CITROEN C8
  • CITROEN Jumpy
  • CITROEN Evasion
  • PEUGEOT 508

Technical parameters:

  • CCD 1/4 " sensor chip
  • diameter of the object lens 19mm
  • it displays the guide links for easy orientation by parking
  • Electronic aperture: 1/50 1/10000 sec.
  • Minimum illumination: 0,1 Lux
  • Signal to noise ratio:> 48dB
  • TV system: NTSC
  • TV lines: 480
  • Waterproof: IP68
  • Lens angle: 170 °
  • Video output: 1.0V / 75 Ohm
  • White balance: automatic
  • Operating temperature -30 ° C to +70 ° C
  • Signal cable lenght 7meters ended with CINCH connectors
  • Power supply cabel lenght 1m
  • Power consuption: <1W

Parameters

Brand of the car Citroen, Peugeot
