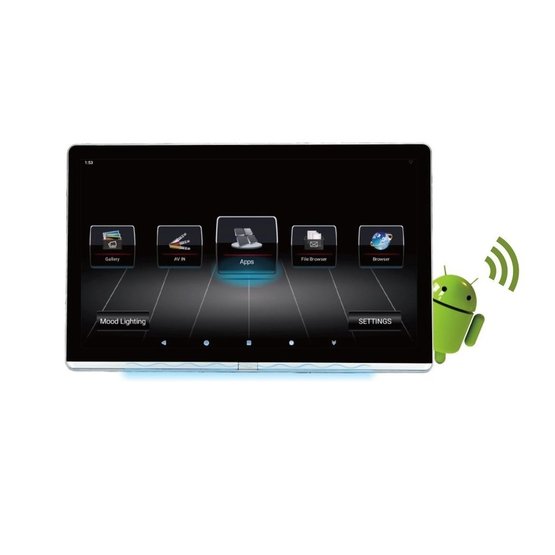

MH1062 Multimedia touchscreen on headrest 10.6" Android10

| MH1062

The slim design multimedia touch monitor (3GB+16GB, 8K video), system Android 10, screen 10.6” in diagonal, HDMI / USB / SD inputs and integrated speakers, is the ideal choice for safe watching movies or videos for rear seat passengers. It is designed for mounting on the front headrest. The device has Bluetooth and Wi-Fi and allows you to use the Miracast function wireless mirroring of the image from a mobile phone, movie control with touch gestures, BT headphones included.


Discontinued

The slim design multimedia touch monitor (3GB+16GB, 8K video), system Android 10, screen 10.6” in diagonal, HDMI / USB / SD inputs and integrated speakers, is the ideal choice for safe watching movies or videos for rear seat passengers. It is designed for mounting on the front headrest. The device has Bluetooth and Wi-Fi and allows you to use the Miracast function wireless mirroring of the image from a mobile phone, movie control with touch gestures, BT headphones included.

MACE-PRO4 image processing engine can eliminate noise from TV or network video, remove the loss of details and color in video signal transmission, thus improve picture quality, recover all the content details and restore natural and detailed image of the world.

Technical parameters:

  • Cortex A55 1.8GHz deca-core CPU (T972)
  • RAM 3GB DDR4, 16GB of internal memory
  • 10.6" LCD touch screen (27.1cm)
  • IPS technology
  • narrow SLIM design
  • FullHD Resolution 1920 x 1080
  • HDMI 2.0/1.4 b, supports HDMI ARC function, MHL 3.0/2.1 input
    • allows phone mirroring using an HDMI cable (not included)
    • does not support interconnecting 2 monitors
  • 1x USB 2.0
  • Bluetooth 4.0
  • Wi-Fi 802.11 b/g/n RTL 8188 ETV 2.4GHz / 5GHz
  • SD slot with capacity up to 256GB
  • support playback of 8K/4K H265 videos
  • MACE-PRO4 image processing technology
  • Miracast wireless mirroring of mobile phone (Android, iOS) / Airplay
    • Note The producer cannot guarantee mirroring function support for every phone brand / firmware version or every phone OS update
  • FM Transmitter - Frequency 88MHz - 108MHz (stereo audio transmission)
  • 3.5 mm jack for headphones
  • Built-in speakers 2 x 5W
  • video input RCA
  • audio RCA input / output
  • other features:
    • automatic sleep mode
    • switch off when ignition is switched off
    • protection system at low battery voltage
    • the possibility of setting the LOGO screen of the car make in the menu
    • the option to charge the phone with a USB cable
  • for vehicles with 12V/24V voltage (9V-36V)
  • working temperature -20 °C ~ + 60 °C
  • current consumption 800mA
  • PAL / NTSC auto mode
  • Dimensions: 265 x 165 x 28mm (without the bracket)

Supported formats: (almost all files in 8K and 4K)

  • HEVC / H 265 3840 × 2160 @ 60 fps DXVA
  • H. 264 - 1080 p @ 60 fps
  • SVC - 1080 p @ 60 fps
  •  MVC - 1080 p @ 60 fps
  •  H. 263 -, max. resolution 720 × 576
  •  Sorenson Spark - 1080 p @ 60 fps
  •  MPEG-4 - 1080 p @ 30 fps
  •  MPEG-2 - 1080 p @ 60 fps
  •  MPEG-1 - 1080 p @ 60 fps
  •  MPEG-2 - 1080 p @ 60 fps
  •  VC 1 - 1080 p @ 60 fps
  • JPEG
  • RV - 1080 p @ 60 fps
  • VP 6 - 1080 p @ 60 fps
  • VP 7 - 1080 p @ 60 fps
  • VP 8-1080 p @ 60 fps
  • WebP - 1080 p @ 60 fps
  • AVS + - 1080 p @ 60 fps
  • RMVB - 1080 p @ 60 fps

Package Contents:

monitor, set of mounting adapters, fixed wiring, BT earphones, wiring to the cigarette lighter socket, user manual

Parameters

Weight 1.788 kg
