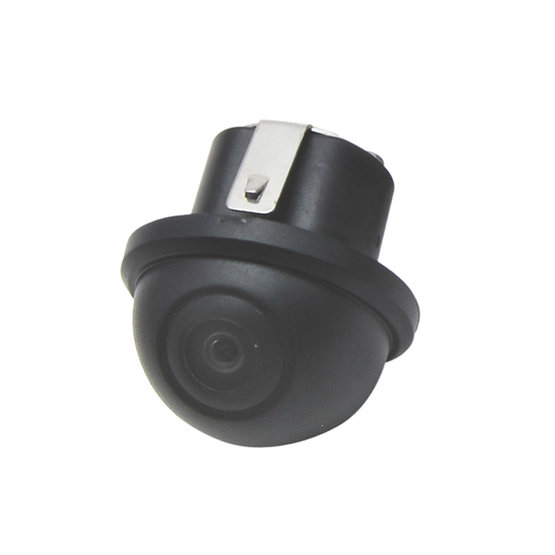

Parking camera universal BC UNI-01

Colour parking camera designed for installation into the body tail of the vehicle, with a viewing angle of 170 °. It is suitable to connect TFT or multimedia system of the vehicle.

Assigned for the car models:

• Honda CRV (2012 ->)

Technical parameters:

• Installation into the hole, diameter of 20mm (drill tool included)
• Camera to install vertically to the ground in the height of 40-100 cm above
• Possible to mount into the both, plastic or metal material
• Option to place under the rearview mirror or on the side of the car to show the space next to the vehicle
• Mirror image
• CCD 1/4 "Sensor
• 19 mm lens in diameter
• Displays the guide lines for easy orientation when parking
• Electronic shutter: 1/50 to 1/10000 sec.
• Minimum illumination: 0.1 Lux
• Signal to noise ratio:> 48dB
• TV system: NTSC
• TV lines: 480
• Weather protection: IP68
• Lens angle: 170 °
• Video Output: 1.0V / 75 Ohm
• White balance: automatic
• Operating temperature from -30 ° C to +70 ° C
• Signal cable length 7 m ended with RCA connectors
• Power cable length 1m
• Power supply: 12V DC
• Consumption: <1W

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
