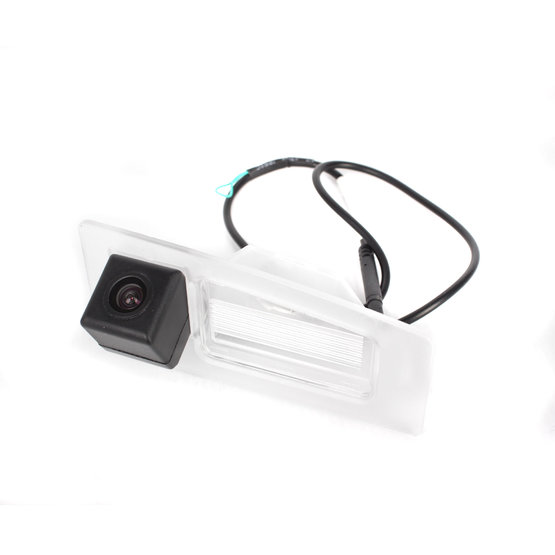

BC MAZ-11 Rearview camera Mazda 3
|
BC MAZ-11
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Mazda 3 sedan cars.
_bc_maz-11/1-bc-maz11.jpg "BC MAZ-11 Rearview camera Mazda 3")
_bc_maz-11/4-bc-maz11.jpg "BC MAZ-11 Rearview camera Mazda 3")
_bc_maz-11/2-bc-maz11.jpg "BC MAZ-11 Rearview camera Mazda 3")
_bc_maz-11/3-bc-maz11.jpg "BC MAZ-11 Rearview camera Mazda 3")
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Mazda 3 sedan cars.
For cars:
- Mazda 3 sedan (14-)
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 105 x 38-49 mm
- pitch 89 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passenger |
| Brand of the car | Mazda |
| Connectors | CVBS-RCA |
| Signal | analog |
| Model of the car | 3 |
| Weight | 0.281 kg |
