BC PGT-BOXER Rearview camera in-brake light
|
BC PGT-BOXER

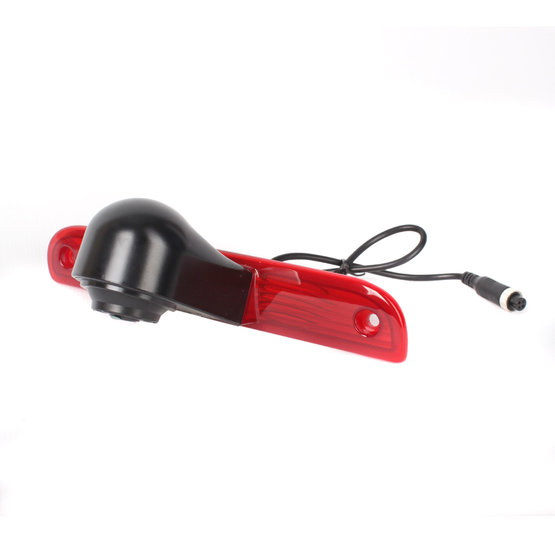

OEM color rearview camera integrated in the central brake light cover glass for Jumper, Boxer, Ducato (06-) cars.
_bc_pgt-boxer/1-bc-pgt-boxer.jpg "BC PGT-BOXER Rearview camera in-brake light")
_bc_pgt-boxer/4-bc-pgt-boxer.jpg "BC PGT-BOXER Rearview camera in-brake light")
_bc_pgt-boxer/3-bc-pgt-boxer.jpg "BC PGT-BOXER Rearview camera in-brake light")
_bc_pgt-boxer/2-bc-pgt-boxer.jpg "BC PGT-BOXER Rearview camera in-brake light")
OEM color rearview camera integrated in the central brake light cover glass for Jumper, Boxer, Ducato (06-) cars.
Suitable for cars:
- FIAT Ducato (2006-2014)
- FIAT Ducato [X250] [X290] (2014->)
- PEUGEOT Boxer (2006-2014)
- PEUGEOT Boxer (2015->)
- CITROEN Jumper (2006-2014)
- CITROEN Jumper (2015->)
- OPEL Movano (2021->) (*Need to check the shape and spacing of the screws)
Technical parameters:
- Sharp CCD 1/4 "sensor chip
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated with RCA connectors (CINCH)
- power cable length 1 m
Camera dimensions:
- base 46 x 263 mm
- pitch of mounting screws 220 mm
Parameters
| Brand of the car | Opel, Citroen, Fiat, Peugeot |
|---|---|
| Model of the car | Movano, Jumper, Boxer, Ducato |
| Use | OEM |
| For cars | commercial |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.583 kg |
Manuals and support
Need help?
Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
