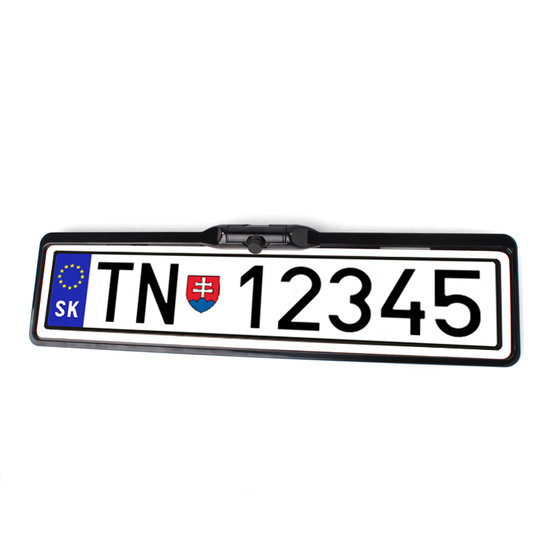

BC PLATE-F Camera front in reg.plate

Rearview camera universal front, integrated in licence plate pad, possible to adjust the camera view direction, view angle of 170°.

Technical parameters:

• PC1089 - 1/3" chip
• electronic aperture: 1/50 1/12000 sec.
• minimum illumination: 0.01 Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (each display is compatible)
• effective points: 720x488
• number of TV lines: 600
• weather protection: IP68
• sensing angle: 170°
• video output: 1.0V / 75 Ohm
• white balance: automatically
• operating temperature from -30 °C to + 75 °C
• signal cable of 7m lenght, with CINCH / RCA connectors (male)
• power cord length 1m
• power supply 12V
• not mirror image (straight image)
• dimensions: 535 x 30 x 138mm (W x H x D)

Note:

• The registration plate number is inserted into the groove at the top of the pad and use double-sided adhesive tape (not included) to secure the reg.plate in the vertical direction.
• The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
