Pandora MOTO EU motorcycle alarm

Pandora MOTO EU is a two-way moto alarm designed to secure a motorcycle. The system includes a waterproof control unit that communicates with a two-way remote control with 868MHz frequency, enabling the user to determine the current state of the motorcycle.

System characteristics

Control unit

• Communication using 868 MHz.
• 3 power consumption modes.
• Integrated accelerometer for shock, motion and tilt detection.
• Integrated backup battery.
• Input for connection of an external temperature sensor.
• USB C port for adjusting and updating the system.
• Check the voltage.
• Memory for events history, events displayed on the remote control.

3 power consumption modes:

1. Full-featured mode

• Power consumption: 6 mA
• Time reaction for remote: 0,1 s

2. Power saving mode

• Power consumption: 4 mA
• Time reaction for remote: 1 s

3. Maximum economy mode

• Power consumption: 2 mA
• Time reaction for remote: no
• Reaction only for security zones, including shock/tilt/motion sensors

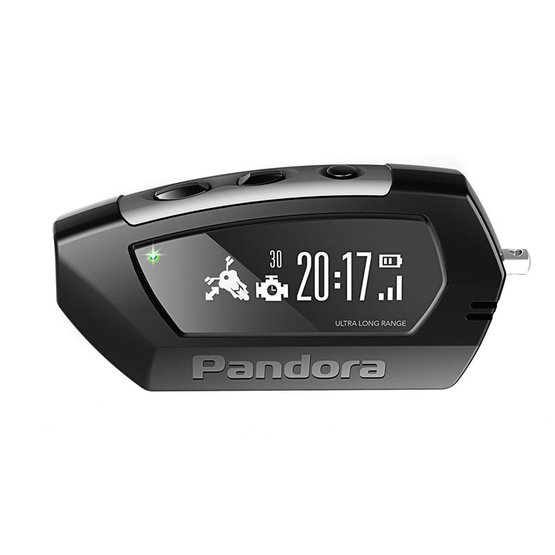

Two-way remote control

• OLED display.
• Vibration of the controller (vibrating when button is pressed).
• 16 different melodies for notifications.
•  AAA battery (1.5V).
•  Battery status indicator.

Monitored motorcycle zones

• Trunk
• Ignition
• Brakes, clutch
• Shake Sensor Level 1 (Warning) 2nd Level (Alarm)
• Motion sensor
• Tilt sensor
• Voltage drop

Package contents

• Control unit
• Plastic card with PIN code
• Two-way remote control (Pandora D-10 MOTO)
• Service button
• Installation instructions
• Engine temperature sensor
• Installation cabling
• Clamping set
• Blocking relay
• Box
• Siren (Pandora PS-330)
• Magnetic switches
