Discontinued

BC PSA-12 Rearview camera with a socket Peugeot Citroen

| BC PSA-12

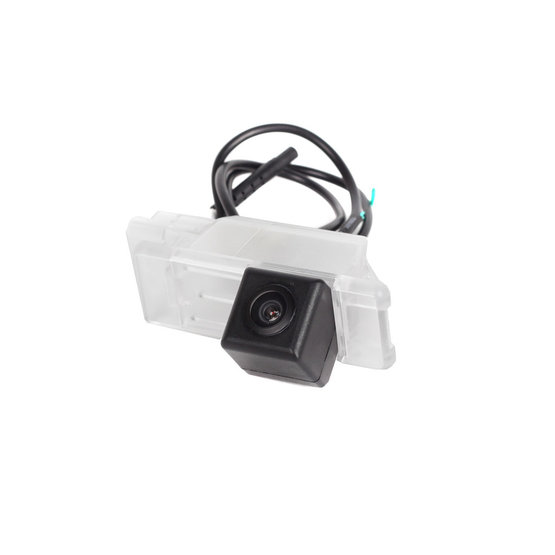

OEM colour parking camera for Peugeot and Citroen cars, to install into the rear licence plate light body. The camera includes a socket to connect the original light bulb.


Discontinued

OEM colour parking camera for Peugeot and Citroen cars, to install into the rear licence plate light body. The camera includes a socket to connect the original light bulb.

Suitable for cars:

  • PEUGEOT 106 II. (1996-2007)
  • PEUGEOT 1007
  • PEUGEOT 307 Hatchback
  • PEUGEOT 307CC
  • PEUGEOT 308
  • PEUGEOT 308CC
  • PEUGEOT 406
  • PEUGEOT 407 Sedan
  • PEUGEOT 408
  • PEUGEOT 508
  • PEUGEOY 607
  • PEUGEOT 806
  • PEUGEOT 807
  • PEUGEOT RCZ
  • PEUGEOT Expert II. (2007->) for the tailgate up folded
  • CITROEN C2
  • CITROEN C4
  • CITROEN C5 (2008->)
  • CITROEN C6
  • CITROEN C8
  • CITROEN Jumpy (2007-) for the tailgate up folded
  • CITROEN Evasion

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 26 x 76 mm
  • pitch between attachment points 62 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

For cars passenger, commercial
Signal analog
Brand of the car Citroen, Peugeot
Connectors CVBS-RCA
Model of the car C2, C4, C5, Evasion, Jumpy, C6, C8, 308, 406, 307, 508, 407, 106 II., 1007, 408, 806, 807, RCZ, Expert II., 607
Use OEM
Weight 0.267 kg

Need help?

Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
