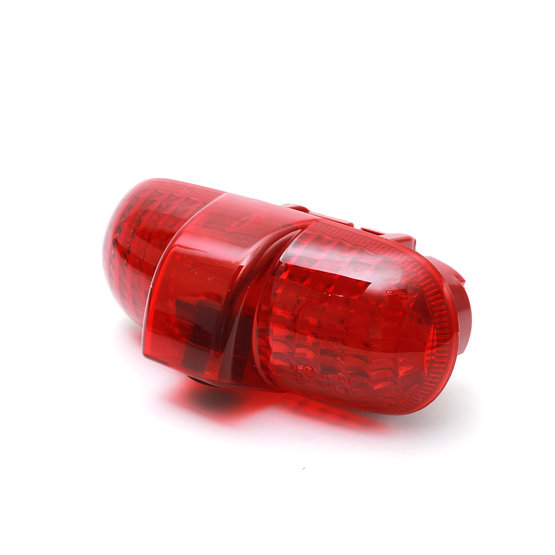

BC REN-05 Rearview camera in brake light
|
BC REN-05
OEM Rear view camera integrated in the central brake light installed above the rear wing or lift door for Renault Trafic II., Opel Vivaro I., Combo vans.
OEM Rear view camera integrated in the central brake light installed above the rear wing or lift door for Renault Trafic II., Opel Vivaro I., Combo vans.
Suitable for cars:
- RENAULT Trafic II. (3 / 2001-2014)
- OPEL Vivaro I. (8 / 2001-2014)
- OPEL Combo (10 / 2001-1 / 2012)
Technical parameters:
- CCD 1/3" scanning chip
- lens focal point: f: 2.8mm
- TV system: NTSC
- video output: 1.0V / 75Ohm
- sensing angle: 170°
- weather protection: IP69K
- camera connector: 4-pin screwdriver
- monitor connector: CINCH (RCA)
- cable length: 10m
- number of scanning pixels: 510x492
- horizontal resolution: 420 TV lines
- white balance: automatically
- minimum lighting: 0.5 LUX
- signal-to-noise ratio:> 48dB
- Electronic shutter: 1/60 to 1/100000 sec.
- power consumption: <3W
- supply voltage: 12V
- operating temperature from -30 °C to + 70 °C
- homologated: yes
Dimensions:
- base 141 x 55 mm - oval
- embedded depth: 50mm
Installation:
The camera is integrated in the central brake light located in the left wing door, replacing the original brake light. The brake light signaling is provided with integrated LEDs. The connector is identical to the original connector.
Note: The camera is intended for non-original (aftermarket) units with CINCH (RCA) input. Use of the original radio may require BCMI video adapter to be connected to the parking camera!
Parameters
| Brand of the car | Renault, Opel, Citroen |
|---|---|
| Signal | analog |
| Model of the car | Trafic II., Vivaro, Combo, Jumpy |
| Connectors | CVBS-RCA, M12 |
| For cars | commercial |
| Use | OEM |
| Weight | 0.546 kg |
