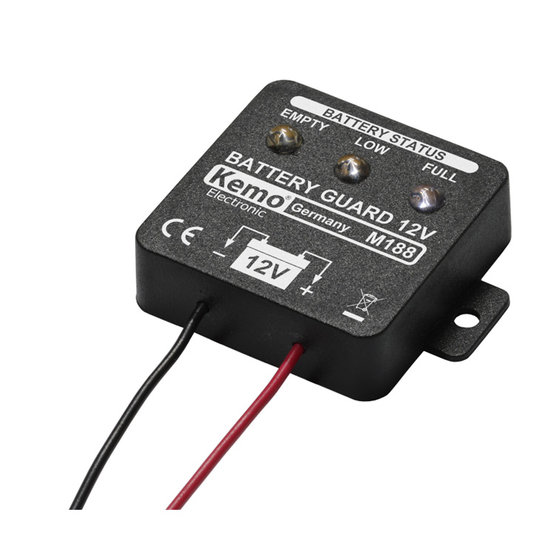

Kemo M188 Battery status panel 12V
|
M188
The battery guard module, lighting the combination of three different color LED, indicates actual voltage of a 12V battery in five levels.
The battery guard module, lighting the combination of three different color LED, indicates actual voltage of a 12V battery in five levels. Indicates recharging the battery during operation 12V battery with three LEDs: "Empty", "Low", "Full". Thus, it is easy to keep the battery voltage under control and prevent of total discharge. It is also possible to monitor whether the battery is in order and if charged with sufficient voltage (when the module is connected while the battery charging). It is usefull device for cars, working machines, battery driven devices. The module needs to be installed so that during standby mode of the equipment/car, it is not directly connected to the battery, but through the switch, ignition or fuse box.
Technical parameters:
- Operating voltage: 10.4 to 15.5 V / DC
- Current consumption: on average less than 4.9 mA
- Status indication: 3 LED,
- green - charged
- YELLOW - low voltage
- RED - empty
- Measuring range:
- RED - less than 10.4V
- Red / YELLOW - 10.5 to 10.8V
- YELLOW - 11.9 to 12.2 V
- YELLOW/GREEN - 12.3 to 12.6V
- GREEN - more than 12,7V
- Dimensions: 40 x 40 x 13 mm (without the clamping surfaces)
Parameters
| Product type | Charging and batteries |
|---|---|
| Weight | 0.066 kg |
