BC SKO-12 Rearview camera Octavia II
|
BC SKO-12

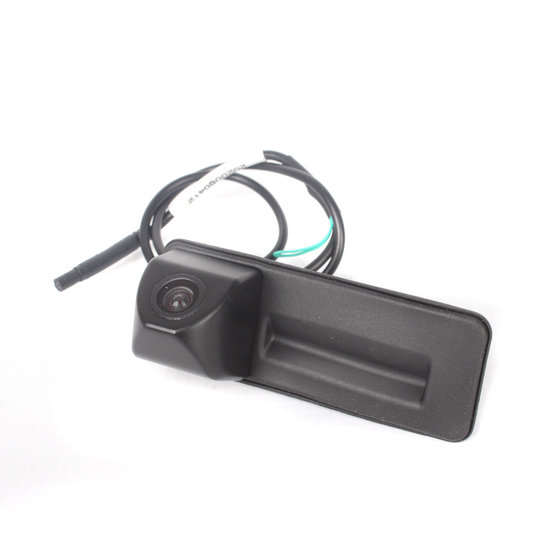

OEM color parking camera for installation into the rear door handle of the luggage compartment. It includes a microswitch for opening the door. For Škoda Octavia II cars. after the facelift.
_bc_sko-12/1-bc-sko-12.jpg "BC SKO-12 Rearview camera Octavia II")
_bc_sko-12/2-bc-sko-12.jpg "BC SKO-12 Rearview camera Octavia II")
_bc_sko-12/3-bc-sko-12.jpg "BC SKO-12 Rearview camera Octavia II")
OEM color parking camera for installation into the rear door handle of the luggage compartment. It includes a microswitch for opening the door. For Škoda Octavia II cars. after the facelift.
For cars:
- Škoda Octavia II. (01/2009- 06/2013)
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera body dimensions:
- base 35 x 92 mm
- pitch 50 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passenger |
| Signal | analog |
| Brand of the car | Škoda |
| Connectors | CVBS-RCA |
| Model of the car | Octavia III. |
| Weight | 0.293 kg |
