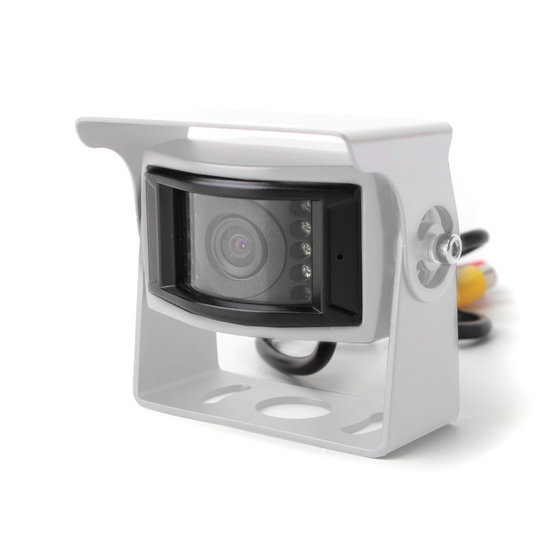

BC UNI-09W Camera analog auto IR 12-24V
|
BC UNI-09W
Rearview camera universal, body in white, 12V/24V, SONY CCD sensor, without guide lines, view angle of 150°, with automatic IR LEDs, metal body.
Discontinued
Rearview camera universal, body in white, 12V/24V, SONY CCD sensor, without guide lines, view angle of 150°, with automatic IR LEDs, metal body.
Technical parameters:
- waterproof design: IP67
- CCD Sony 1/3" Chip
- electronic Aperture: 1/50 1/10000 sec.
- minimum illumination: 0.01Lux
- IR illumination of 10 LEDs
- signal-to-noise ratio: > 48dB
- TV system: NTSC (compatible with each display)
- number of TV lines: 480
- weather protection: IP67
- sensing angle: 150°
- video output: 1.0V / 75 Ohm
- white balance: automatically
- operating temperature from -30 °C to + 70 °C
- signal cable length 7m terminated CINCH / RCA connectors
- power cable length 1m
- power supply: 12-24V DC
- consumption: <1W
- image switch: normal / mirror
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 0.541 kg |
