Parking sensors Steelmate PTS800EX

Front and rear Park Assist system STEELMATE with 8 sensors, acoustic. Suitable for installation into front and rear bumper.

System description:

• acoustic signalisation (buzzer)
• sensors are mounted in the front and back bumper
• when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)
• fast obstacle detection
• automatic detection of damaged sensor

Technical parameters:

• supply voltage: 12V DC
• working power: <2,5 W
• detection range - front: 0,3 ~ 1,5 m
• detection range - rear: 0,3 ~ 1,0 m
• operating temperature: -40 ° ~ 80 °
• buzzer: 70 db
• sensor diameter 18,5mm

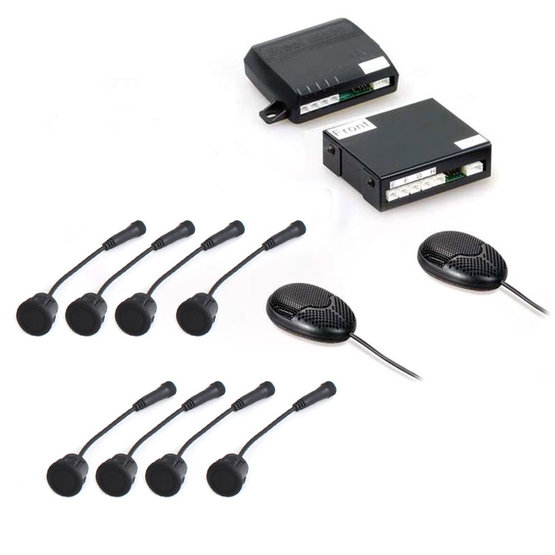

Package:

• 8pcs of parking sensor
• 2pcs of buzzer
• 2 control units
• wiring
• drill
• manual
• warranty card
