BC UNI-12 Micro camera, RCA, 800TVL, 12mm, 125°
|
BC UNI-12

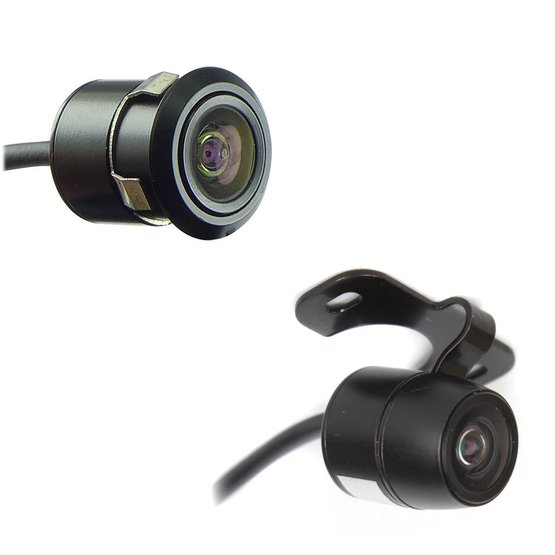

Universal micro parking camera with a 125° view angle for horizontal installation. The option to turn on/off the guide lines and the mirror image, flush installation in a 13mm hole. The camera can also be installed in a holder - surface mounting.
Universal micro parking camera with a 125° view angle for horizontal installation. The option to turn on/off the guide lines and the mirror image, flush installation in a 13mm hole. The camera can also be installed in a holder - surface mounting.
Technical parameters:
- 1/4" CMOS sensor
- view angle: 125°
- resolution: 800 TV lines
- minimum illumination: 0.01Lux
- TV system: NTSC
- current consumption: 25-55 mA
- effective points: 960x480
- power supply 9V-12V
- weather protection: IP69K
- video output: 1.0V / 75 Ohm
- working temperature from -40 °C to +75 °C
- camera dimensions: ∅12,5 x 15 mm
- signal cable length 8m terminated with CINCH connectors

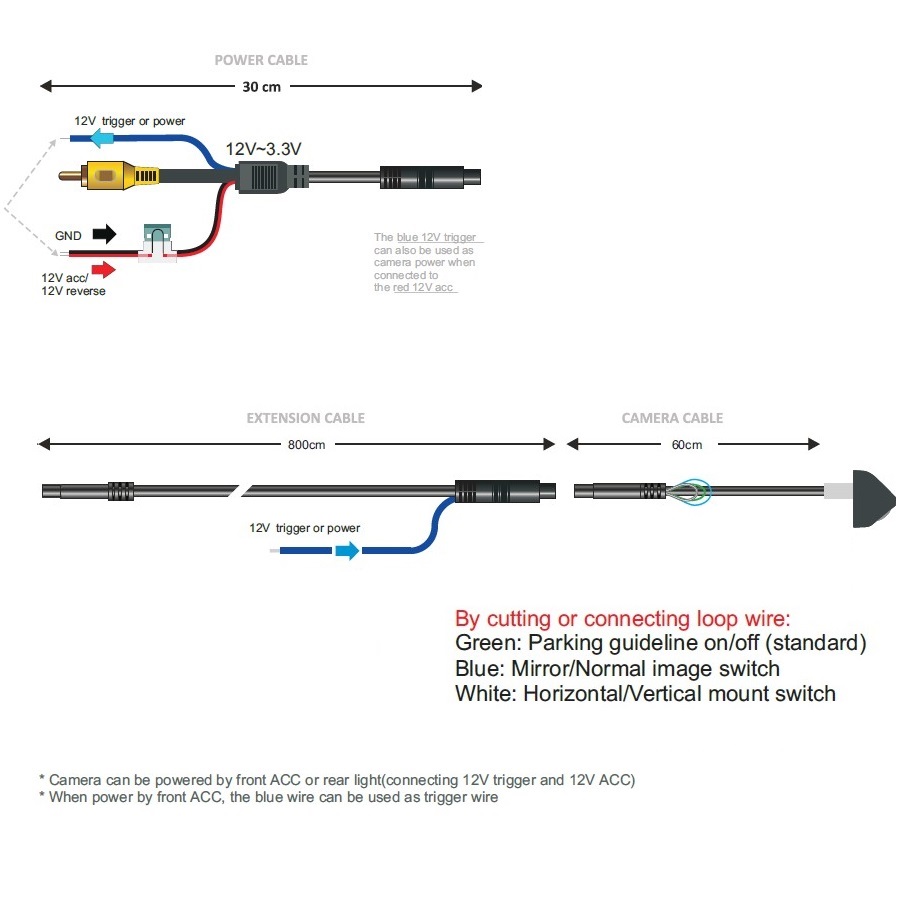

Image orientation (to change by cutting the color loop)
- GREEN loop - Guide lines
- WHITE loop - Right / Left flip (mirror image)
Included:
- video camera + holder
- cable 8m + reduction 30cm
- drill bit 13mm
Parameters
| Connectors | CVBS-RCA |
|---|---|
| Use | UNI |
| For cars | passenger |
| Signal | analog |
| Weight | 0.29 kg |
