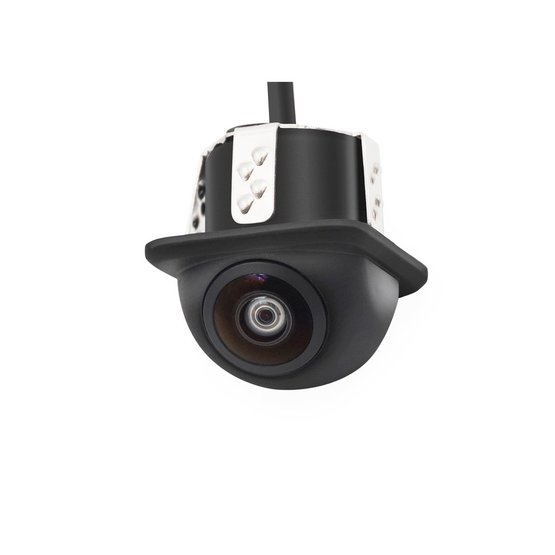

BC UNI-13 Mini camera, RCA, 800TVL, 155°
|
BC UNI-13
Universal parking camera with 155° view angle for horizontal or vertical installation, the option to turn on/off the guide lines, mirror image, installation in a hole of 22.5 mm.
Universal parking camera with 155° view angle for horizontal or vertical installation, the option to turn on/off the guide lines, mirror image, installation in a hole of 22.5 mm.
Technical parameters:
- 1/4" CMOS sensor
- view angle: 155°
- resolution: 800 TV lines
- minimum illumination: 0.01Lux
- TV system: NTSC
- current consumption: 25-55 mA
- effective points: 960x480
- power supply 9V-12V
- weather protection: IP69K
- video output: 1.0V / 75 Ohm
- working temperature from -40 °C to +75 °C
- camera dimensions: 30x26x26 mm
- signal cable length 8m terminated with CINCH connectors

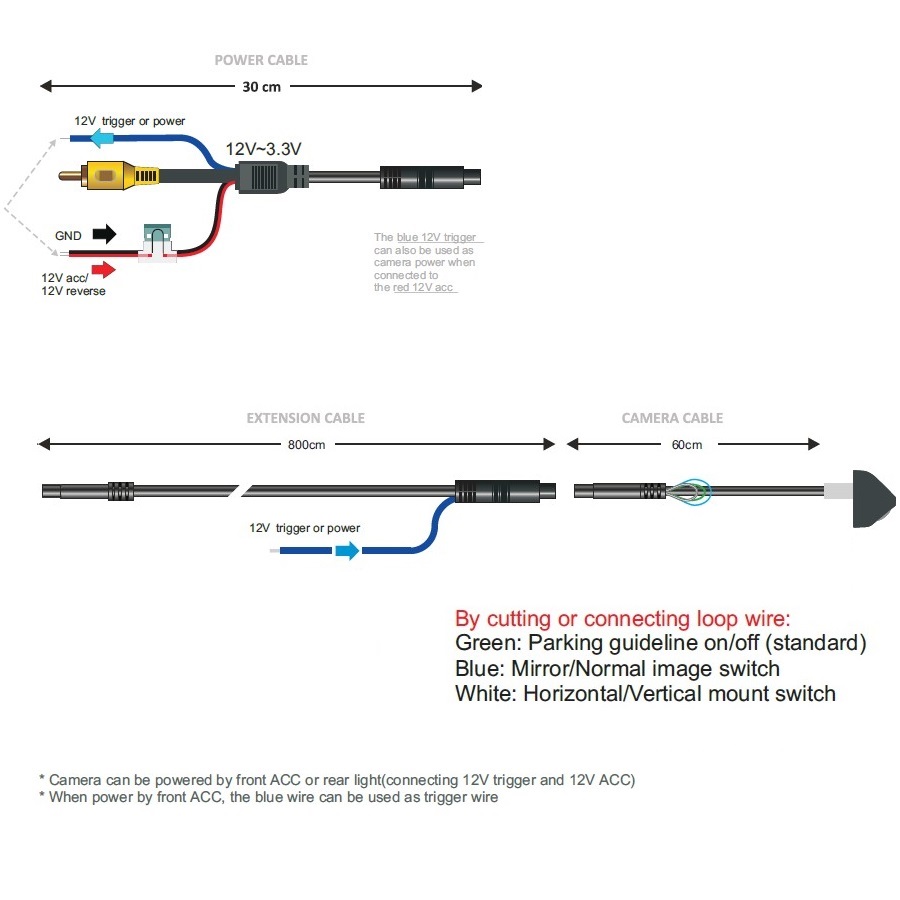

Image orientation (to change by cutting the color loop)
- GREEN loop - Guide lines
- BLUE loop - Right / Left flip (mirror image)
- WHITE loop - Horizontal / Vertical flip
Included:
- video camera
- cable 8m + reduction 30cm
- drill bit 22.5 mm
Parameters
| Use | UNI |
|---|---|
| For cars | passenger |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 0.27 kg |
