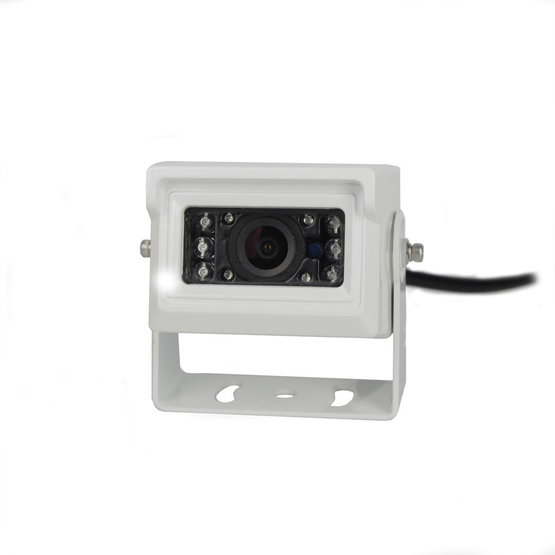

BC UNI-14 Camera with U holder, RCA, 800TVL, 105°, white

| BC UNI-14

Universal white color camera with 105° (horizontal) view angle for vans and commercial vehicles 12/24V, the option to turn on/off the guide lines, mirror image, installation using a U-bracket - surface mounting.

Show price

BC UNI-14 Camera with U holder, RCA, 800TVL, 105°, white

Universal white color camera with 105° (horizontal) view angle for vans and commercial vehicles 12/24V, the option to turn on/off the guide lines, mirror image, installation using a U-bracket - surface mounting.

Technical parameters:

1/4" CMOS sensor
horizontal scanning angle: 105°
resolution: 800 TV lines
auto IR - 10x LEDs
minimum illumination: 0.01Lux
TV system: NTSC
current consumption: 25-55 mA
effective points: 960x480
power supply 9V-26V
weather protection: IP69K
video output: 1.0V / 75 Ohm
working temperature from -40 °C to +75 °C
camera dimensions: 55 x 55 x 42 mm (without holder)

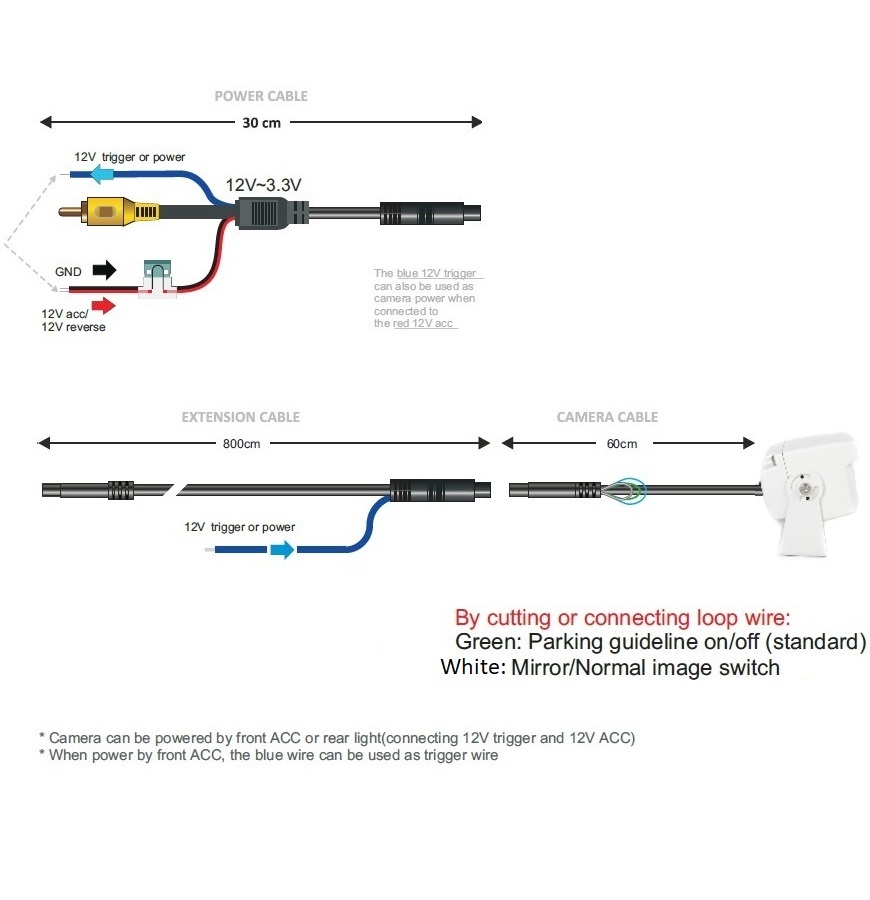

Image orientation (change by cutting the color loop)

GREEN loop - Guide lines
WHITE loop - Right / Left flip (mirror image)

Included:

camera + U holder
cable 8m
reduction 30cm

Parameters

Use	UNI
For cars	commercial
Signal	analog
Connectors	CVBS-RCA
Weight	0.32 kg
