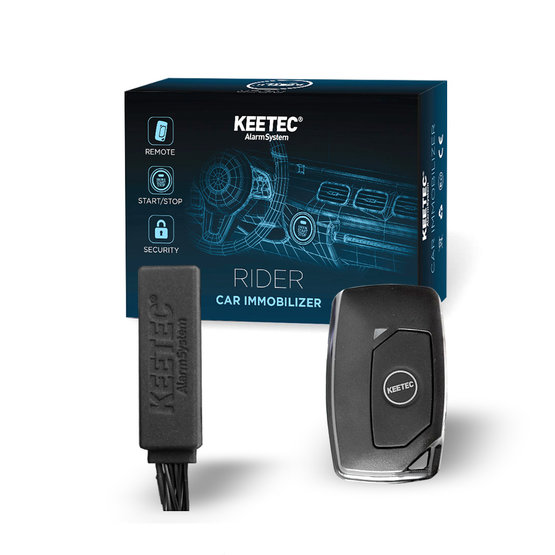

Keetec RIDER contactless immobilizer for blocking the START/STOP button

The Keetec RIDER is a brand new anti-theft device in the vehicle security segment.

The contactless immobilizer is designed for effective and quick blocking of the Start/Stop button or other low-current circuits of the most modern vehicles, thus reliably preventing the use of the vehicle by an unauthorized person.

User authorization is "contactless" through the elegant RC SMART 2 key fob with an innovative algorithm for maximum battery life (more than 3 years).

The kit includes an owner's card with a unique PIN code for emergency deactivation of the system.

Features

• Zero consumption blocking relay
• Contactless control
• Possibility of blocking the start/stop button
• Activation of service mode by button or remote control
• External service button
• Possibility of one-time emergency deactivation
• Plastic card with a unique PIN code
• Minimalist design of the control unit
• Possibility to pair up to 10 remote controls
• The possibility of blocking two circuits

Technical parameters

• Supply voltage 12/24V
• Current carrying capacity of the blocking relay 1A
• Current consumption in active state 4.7mA
• Dimensions of the control unit 14x20x67mm
• Operating temperature of the device -40°C to +80°C
• The working frequency of the remote control is 2.4GHZ

Package contents

• Control unit
• Remote control RC SMART 2
• Plastic card of the owner
• Valet button

Warning: Make sure to use maximum current load of the blocking relay 1A. Use additional devices to control larger current loads.
