BC UNI-BRAKE Brake light camera universal 700TVL, 140°
|
BC UNI-BRAKE
Universal parking camera in the central brake light integrated, designed for vans, caravans and motorhomes.
Universal parking camera in the central brake light integrated, designed for vans, caravans and motorhomes.
Technical parameters:
- 1/3" CMOS sensor
- horizontal view angle: 140° (diagonal 170°)
- resolution: 700 TV lines
- minimum illumination: 0.1Lux
- TV system: NTSC
- effective points: 510x492
- power supply for 12V vehicles
- weather protection: IP69K
- video output: 1.0V / 75 Ohm
- working temperature from -30 °C to +70 °C
- light dimensions: 26 x 10 mm
- homologation E9
In the package:
- brake light camera

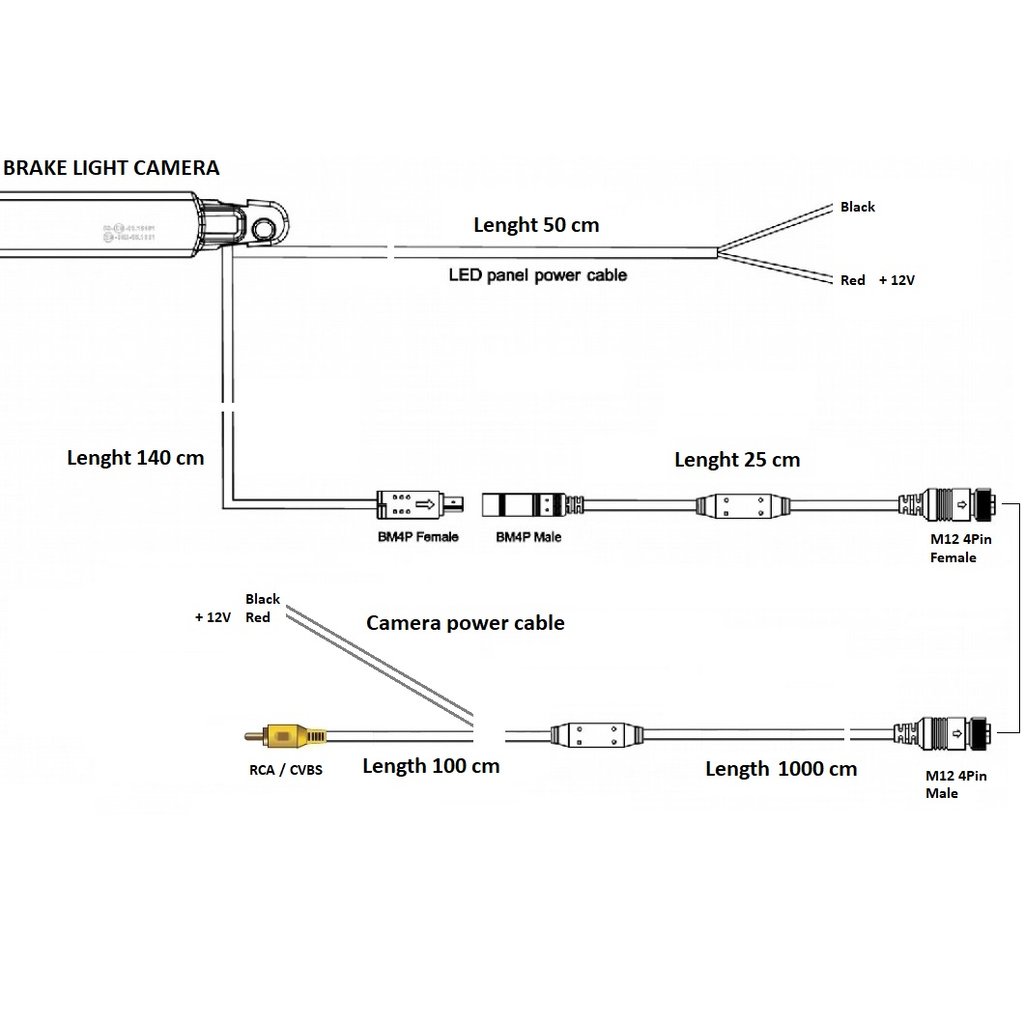

- cabling 10m + reduction
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.61 kg |
