BC VW-07 Rearview camera in brake light
|
BC VW-07

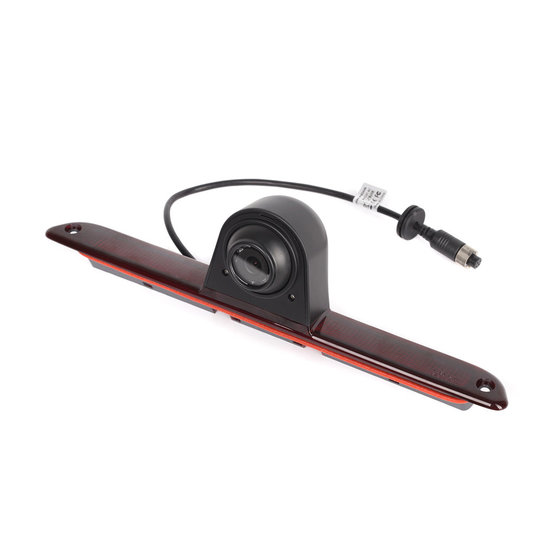

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Mercedes and VW vans.
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Mercedes and VW vans.
Suitable for cars:
- MERCEDES Sprinter [W906] (2006-2017)
- MERCEDES Sprinter [W907, W910] (2018-)
- VW Crafter (4 / 2006-2017)
Technical parameters:
- Sharp CCD 1/4" sensor chip
- IR LEDs (6 pieces)
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated RCA connectors (CINCH)
- power cable length 1 m
Camera dimensions:
- base 35 x 340 mm
- hole pitch for screws 307 mm
Parameters
| Model of the car | Sprinter, Crafter |
|---|---|
| Use | OEM |
| For cars | commercial |
| Brand of the car | Mercedes, VW |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.996 kg |
