BC VW-12 Rearview camera Škoda VW Audi
|
BC VW-12

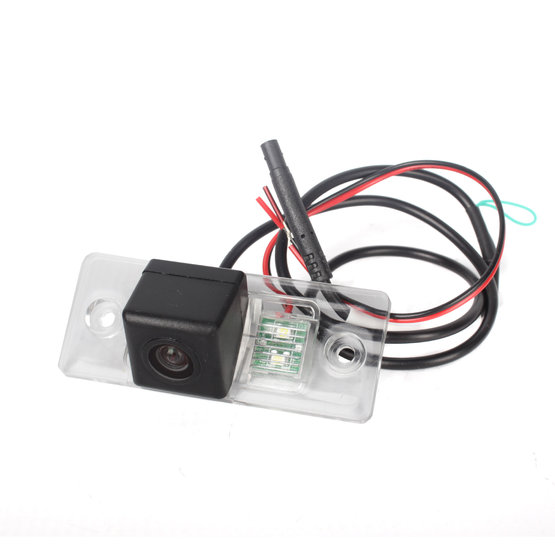

OEM colour parking camera to install into the rear licence plate light body. The camera includes an LCD light that replaces the original lighting. For Škoda, Audi, VW cars.
OEM colour parking camera to install into the rear licence plate light body. The camera includes an LCD light that replaces the original lighting. For Škoda, Audi, VW cars.
For cars:
- Audi A8 (4E) (03-09)
- Skoda Yeti
- Volkswagen Passat
- Polo 4-doors
- Tiguan 2011
- Touareg
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
- LED colour: cold white
Camera dimensions:
- base 31 x 77 mm
- pitch 60 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Brand of the car | Audi, Škoda, VW |
|---|---|
| Signal | analog |
| Model of the car | A8, Passat, Polo, Tiguan, Yeti, Touareg |
| Use | OEM |
| Connectors | CVBS-RCA |
| For cars | passenger |
| Weight | 0.272 kg |
