BC VW-14 Rearview camera VW Škoda Seat

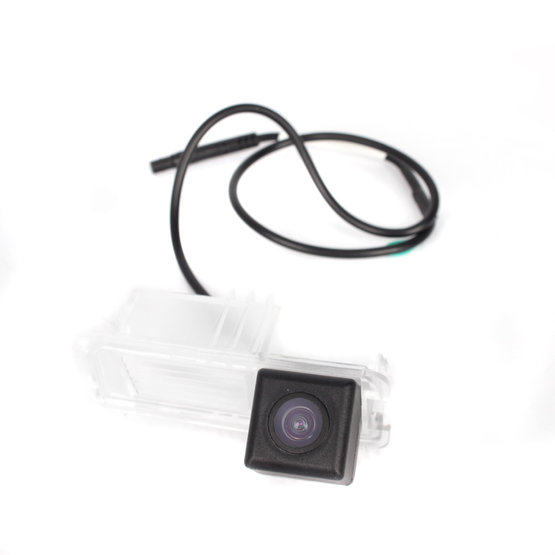

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Seat, Škoda, VW cars.

For cars:

• Seat Altea from (07-09)
• Seat Exeo from (09-)
• Seat Ibiza Cupra
• Seat Leon from (06-09)
• Škoda Superb II (08-)
• VW Amarok (10-)
• VW Beetle (05-10)
• VW Bora (13-)
• VW EOS (06-)
• VW Golf5 hatchback
• VW Golf6 hatchback
• VW Golf7 hatchback
• VW Jetta (05-)
• VW Lupo
• VW Passat B7
• VW Passat CC (08-)
• VW Phaeton (02-)
• VW Polo IV (9N3)  (05-09)
• VW Polo V (6R, 6C)) (05-17)

Technical parameters:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cord: 30cm
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 77 x 28 mm
• pitch 79 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
