BC VW-17 Rearview camera Passat B8
|
BC VW-17

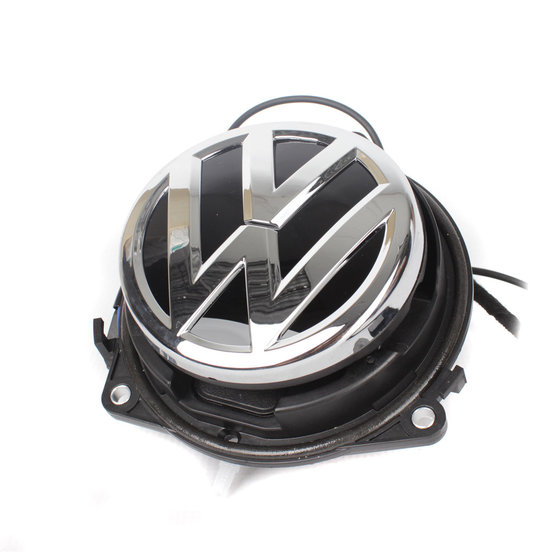

OEM Rearview camera integrated in the "VW" logo located on the 5-th door. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained. For VW Passat B8, Aerton cars.
OEM Rearview camera integrated in the "VW" logo located on the 5-th door. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained. For VW Passat B8, Aerton cars.
Suitable for cars:
- VW Passat (08 / 2014-) (B8)
- VW Arteon (2018-)
- VW Golf 8
Parameters:
- diameter of chrome logo - 11cm
- sensor: PC3089 1/3"
- possibility to turn on / off the display of auxiliary trajectories (guide lines)
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 600
- effective pixels 668 × 576
- weather protection: IP67
- sensing angle: 170 °
- camera body: durable "private housing" plastics
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 6.2 m terminated with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
NOTE: The camera is designed for non-original (pre-assembled) radios with CINCH = AV input. Use with an original radio probably requires the connection of a video adapter for the parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passenger |
| Model of the car | Passat B8, Arteon, Passat |
| Signal | analog |
| Brand of the car | VW |
| Connectors | CVBS-RCA |
| Weight | 1.254 kg |
