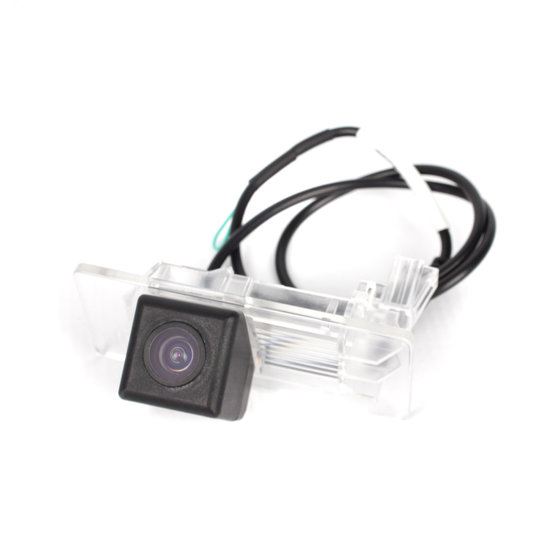

BC VW-90 2 Rearview camera Škoda Rapid

OEM colour parking camera to install into the rear licence plate light body. There is a cap in the camera body for the mounting of the original light bulb.

Suitable for cars:

• ŠKODA Superb II. Combi (3/2008->)
• ŠKODA Rapid [NH] (10/2012->)
• Škoda Octavia III. (2013->)
• Škoda Yeti (2012->)
• ŠKODA Citigo (10/2011->)
• VW Polo IV. (2005-2009)
• VW Jetta
• VW Golf V. (10/2003->)
• VW Pheaton
• VW Beetle
• VW Passat (2011->)
• VW Passat B6 (2005->)
• VW Sharan II. (2010->)
• SEAT Leon [1P] (2005->)
• SEAT Altea XL

Specification:

• sensor: PC3089 1/3"
• option to enable/disable to display the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• camera body: durable plastics "private housing"
• image display: mirror
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 33 x 76 mm

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
