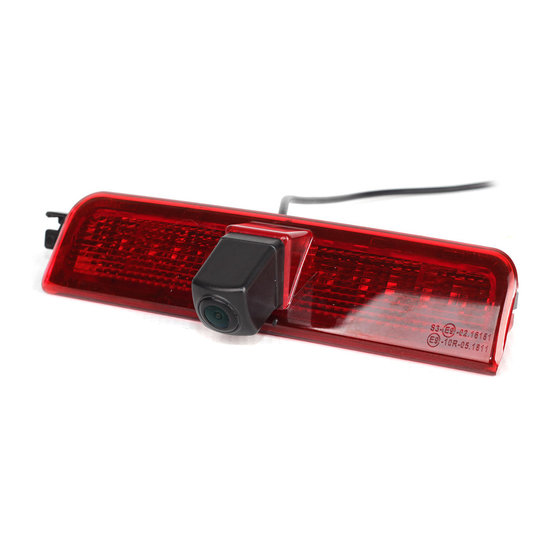

BC VW-CADDY Rearview camera in brakelight

| BC VW-CADDY

Parking camera integrated in the central brake light installed above the rear lift door for VW Caddy (10-15) vans. Camera with E-mark.


Discontinued

Parking camera integrated in the central brake light installed above the rear lift door for VW Caddy (10-15) vans. Camera with E-mark.

Assigned for the car models:

  • VW Caddy III. (2008-5 / 2016)
  • VW Caddy IV. (6 / 2016->) for wing door only

Technical parameters:

  • sensor: PC3089 1/3"
  • Electronic Aperture: 1/50 1/10000 sec.
  • Minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 420
  • weather protection: IP68
  • sensing angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • white balance: automatically
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • Signal cable: 6.2m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

E-mark: E9 10R

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Signal analog
Plugs CVBS-RCA, M12
Use OEM
Brand of the car VW
For cars commercial
Model of the car Caddy
Weight 0.56 kg
