Vehicles
BC VW-CRAFTER Rearview camera in brake light
|
BC VW-CRAFTER

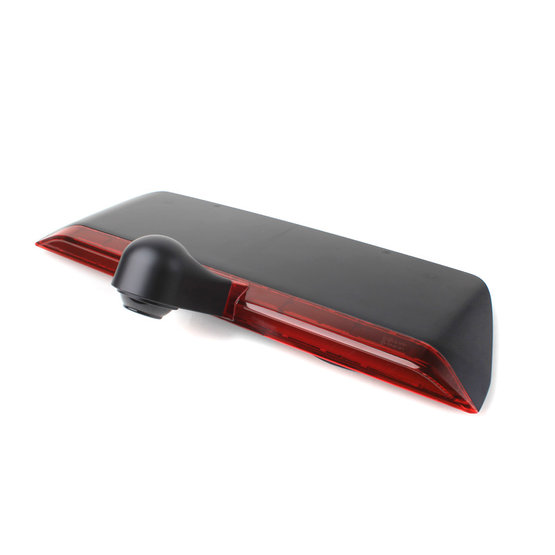

Parking camera integrated in the central brake light installed above the rear door for VW Crafter (17-) vans. Camera with E-mark.
__bc_vw-crafter/1-bc-vw-crafter.jpg "BC VW-CRAFTER Rearview camera in brake light")
__bc_vw-crafter/4-bc-vw-crafter.jpg "BC VW-CRAFTER Rearview camera in brake light")
__bc_vw-crafter/3-bc-vw-crafter.jpg "BC VW-CRAFTER Rearview camera in brake light")
__bc_vw-crafter/2-bc-vw-crafter.jpg "BC VW-CRAFTER Rearview camera in brake light")
Parking camera integrated in the central brake light installed above the rear door for VW Crafter (17-) vans. Camera with E-mark.
Suitable for cars:
- VW CRAFTER (17-)
Specification:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 10 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
- Homologizácia: E9 10R
NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
Parameters
| Signal | analog |
|---|---|
| Connectors | CVBS-RCA, M12 |
| Use | OEM |
| Brand of the car | VW |
| For cars | commercial |
| Model of the car | Crafter |
| Weight | 1.5 kg |
