BC VW-T6 LIFT Rearview camera in brake light

| BC VW-T6 LIFT

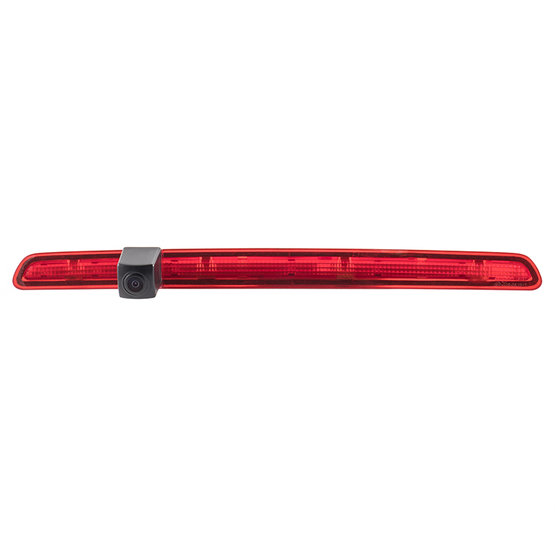

Parking camera integrated in the central brake light installed above the rear lift doors for VW Transporter T6 15-) vans. Camera with E-mark.


Parking camera integrated in the central brake light installed above the rear lift doors for VW Transporter T6 15-) vans. Camera with E-mark.

For cars:

  • VW Transporter T6 (15-)          for model with up lift rear door only
  • VW Caddy [2K] (Facelift 2015-2020) for model with up lift rear door only

Technical parameters:

  • sensor: PC3089 1/3"
  • Electronic Aperture: 1/50 1/10000 sec.
  • Minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 420
  • weather protection: IP68
  • sensing angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • white balance: automatically
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • Signal cable: 6.2m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W
  • E-mark

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Model of the car Transporter, T6
Signal analog
Plugs CVBS-RCA, M12
Use OEM
Brand of the car VW
For cars commercial
Weight 0.714 kg
