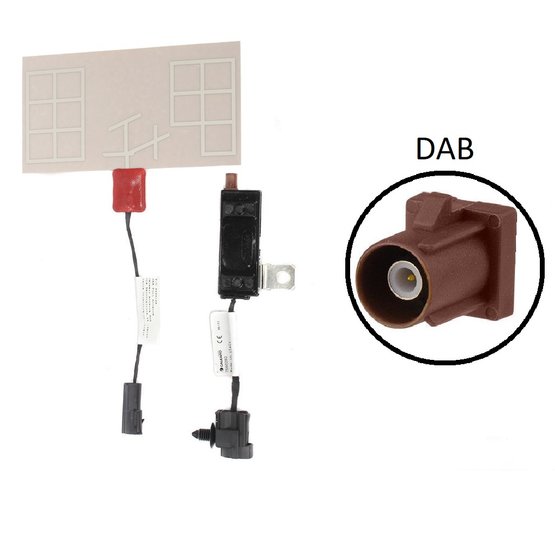

CAL-7677951 Calearo DAB active phantom foil antenna
DAB active phantom foil antenna.
Discontinued
| DAB - DAB+ | |
| Connector | FAKRA male BROWN |
| Extension cable | Extension cable not included |
| Consumption | 60 mA max |
| Power Supply | 12V Phantom |
| Frequency | III Band = 174 ÷ 240 MHz |
| VSWR | III Band < 2:1 |
| Gain | III Band = 10 dBi |
| Mounting | Internal on bumper and plastic or fiberglass parts Antenna fixing: adhesive Amplifier: screw |
| Temperature | -40° C až +95° C |
| Weight | 100 g |
Parameters
| Use | Universal |
|---|---|
| Location | rear |
| Manufacturer | CALEARO |
| Connector | w/o lead, FAKRA |
| Signal | DAB |
| Weight | 0.128 kg |
