CAL-7771003 Calearo Antenna 16V UHF 5.0m cable

CALEARO | CAL-7771003

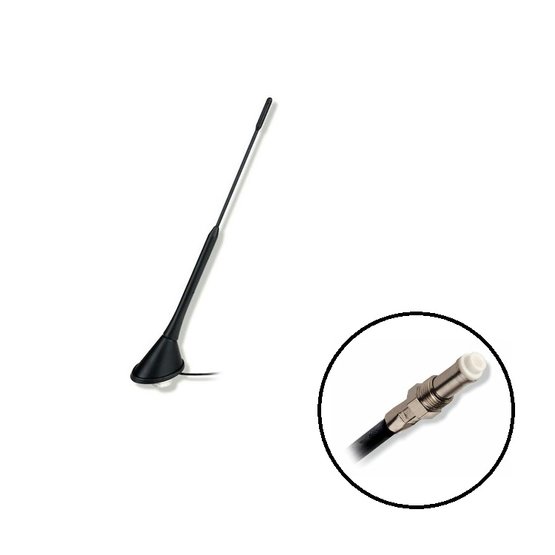

Universal 60° roof antenna for radios operating in the UHF band

CAL-7771003 Calearo Antenna 16V UHF 5.0m cable

Universal 60° roof antenna for radios operating in the UHF band

- UHF frequency range 430-470MHz
- profit: 3dBi
- max. power: 20W
- VSWR: TX <2: 1 / BW 2MHz
- antenna lead length: 5m (RG58)
- radio connector: FME female
- antenna connector: FAKRA male (cable 14cm)
- black colour
- inclination: 60°
- rod length: 26.5 cm
- temperature range of use: -40 to 85 °C
- protection class: IP68
- base dimensions: 9.8 x 5cm (L x W)
- diameter of the hole in the body: round 19mm / square 15x15mm

Use in cars: on the roof for cars or trucks, can be used as a replacement for the original antenna. If a different type of connector is required on the side of the connected device, it is possible

Use

Antenna for UHF radios
Antenna tilt angle 60°
