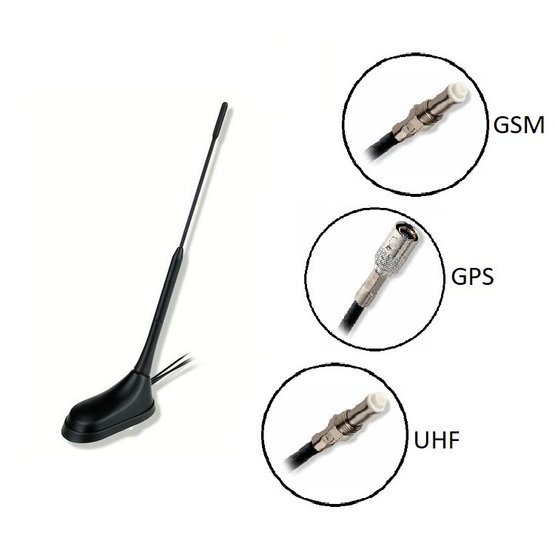

CAL-7771004 Calearo Antenna 16V UHF GNSS GPRS 5.0m cable
Antenna 16V UHF GNSS GPRS 5.0m cable.
Frequencies:
- GSM=890-960/1710-1880 MHz
- GPS=1575,42±1,023 MHz
- UHF=430/470 MHz
Parameters:
- Gain:GPS≥27
- Max Power: GSM= 4W UHF 20 W
- VSWR:GSM TX <1,5:1 RX<2:1 GPS<2:1 UHF<2:1 MHz
- Power consuption: GPS = 30 mA
- Connector:GSM=FME F GPS=SMB F UHF=FME F
- Antena cable: GSM (L=5 MT Z=50Ω) GPS (L=5 MT Z=50Ω) UHF (L=5 M Z=50Ω)
- Mounting Hole: ø 19 mm
Parameters
| Use | Universal |
|---|---|
| Location | rear |
| Manufacturer | CALEARO |
| Connector | SMB, FME |
| Signal | GSM, GPS, UHF |
| Weight | 0.651 kg |
