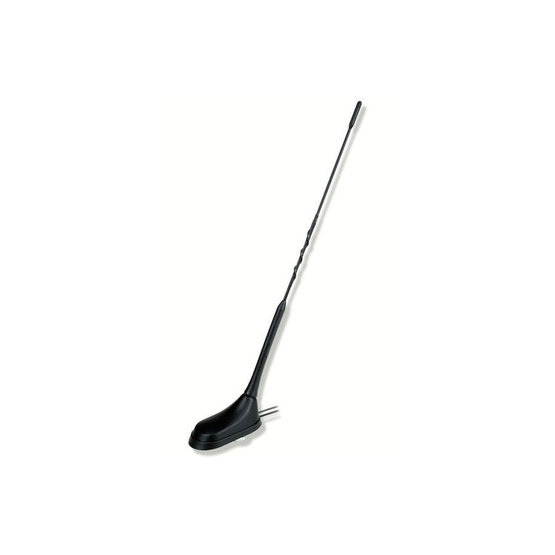

CAL-7771005 Calearo Antenna 16V VHF GNSS GPRS 5.0m cable

CALEARO | CAL-7771005

Antenna 16V VHF GNSS GPRS 5.0m cable.

Show price
CAL-7771005 Calearo Antenna 16V VHF GNSS GPRS 5.0m cable

Frequencies:

  • GSM=890-960/1710-1880 MHz
  • GPS=1575,42±1,023 MHz
  • VHF=146/174 MHz

Parameters:

  • Gain:GSM=0 dBi GPS≥27 dBi VHF 2,14 dBi
  • Max Power: GSM= 4W VHF 20 W
  • VSWR:GSM TX <1,5:1 RX <2:1  GPS<2:1  VHF<2:1 BW2 MHz
  • Power consuption: GPS = 30 mA
  • Connector:GSM=FME F GPS=SMB F VHF=FME F
  • Antena cable: GSM (L=5 MT Z=50ΩC=101 pF/M) GPS (L=5 MT Z=50Ω C=101 pF/m) VHF (L=5 M Z=50Ω C=101 pF/m)
  • Mounting Hole: ø 19 mm

Parameters

Use Universal
Location rear
Connector SMB, FME
Signal GSM, GPS
Manufacturer CALEARO
Weight 0.658 kg
