Rear parking sensors PM FBSN - 4S

Rear parking system APRI with 4 sensors and buzzer, 3 different sensor adapters, „hook corrections“ function, MUTE function, sensitivity for each sensor. It contains control unit, harness, rear sensors.

Set not includes drill - drill holes are depending by type of bracket - O18/22/24mm.

Function

• Possible to set the sensitivity of the sensors in 4 levels
• Temporary deactivation of rear sensors (by switch or by towing bar socket)
• MUTE function - car audio is automatically faded-out during indication of obstacles
• Fault sensor is automatically detected
• Settable volume of the speaker

Technical parameters

• Supply voltage: 9-30V DC
• Current consumption: 350 mA max.
• Operational temperature: -25 / + 70°C
• Working frequency: 40kHz
• Detection range of rear sensors: max. 180 cm (default on 160cm)

Package

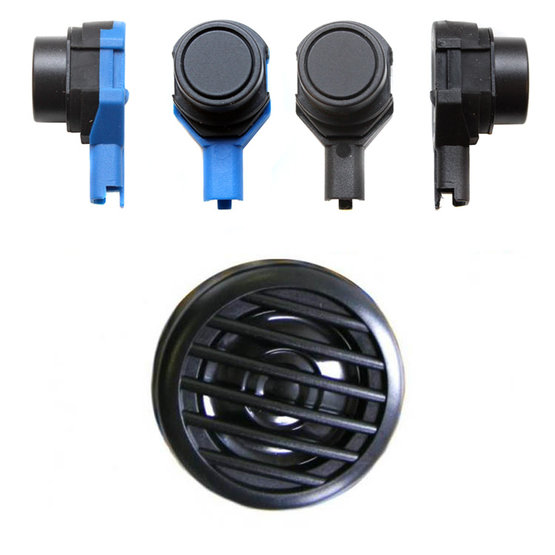

• 4 rear sensors (two central marked with black colour and two corner with blue color)
• Main control unit with display and operating buttons
• Rear cable harness
• Speaker
