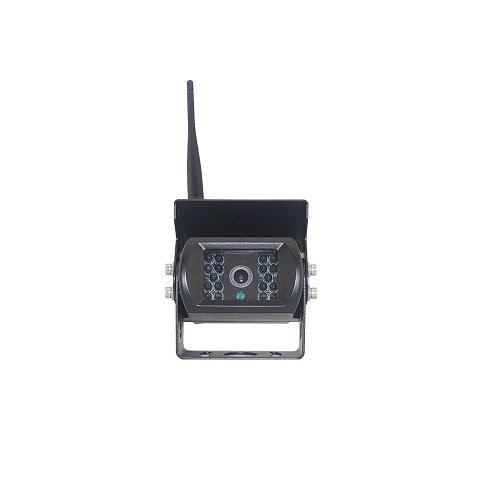

CAMHDW Camera mobile wireless AHD auto IR 12-24V
|
CAMHDW
AHD Camera 720p for vehicles, with auto IR, to display on TFT7HDW monitor, powered locally in the place of installation, signal wireless transmission to monitor, ideal to install as rear, because of the metal body and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor, homologated.
AHD Camera 720p for vehicles, with auto IR, to display on TFT7HDW monitor, powered locally in the place of installation, signal wireless transmission to monitor, ideal to install as rear, because of the metal body and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor, homologated.
Features
- 1/2.7” CMOS image sensor
- HD resolution 1280 * 720
- angle of view: 140°
- water resistance IP69K
- without microphone
- dimensions 74 x 46 x 56 mm (without shield and stand)
- material aluminum alloy
- maximum range of 200 meters in open space
- video compression H264
- FHSS floating frequency
- power cord with waterproof connector
- time delay 120ms
- shock resistance min. 4G
- frequency range 2400 - 2483.5 MHz
- DC 12-24V power supply
- working temperature from -20 to +70 °C
Package contents: camera with U holder and antenna, Allen key, double-sided 3M tape
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Signal | AHD |
| Connectors | wireless |
| Weight | 0.424 kg |
