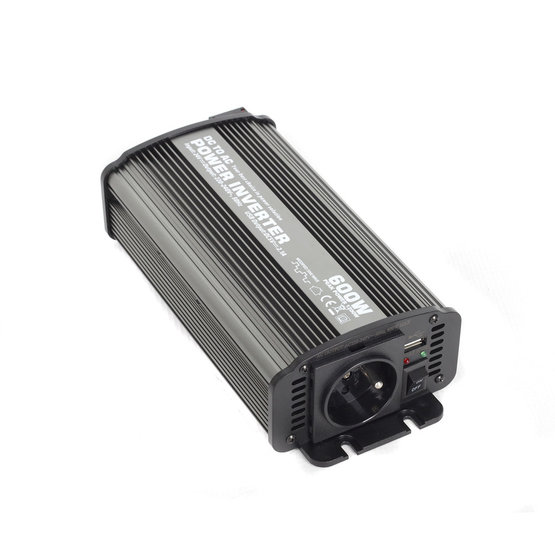

CAR600-24V Voltage inverter from 24V to 230V + USB, 600W

Power Inverter 600W suitable for vehicles with 24V on-board network (trucks, commercial vehicles), for small appliances 230V powered, such as pumps, light bulbs and similar. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).

Features:

• maximum peak power of 1.200W
• nominal power 600W
• current consuption: 450mA
• input voltage 12V
• dimensions 235*102*55 mm
• USB output 5V (max. 2,1A)
• output frequency 50 ±3 Hz
• protection against overload, overheating, overvoltage at the input, undervoltage at the input
• protection against polarity reversal

ATTENTION: Do not connect the output of the inverter together with other sources of alternating current! (with another 230V mains socket, neither in parallel, nor in series, nor with the mains socket of the public distribution network/other converters).

Examples of using an inverter with suitable performance (make sure the inverter is not undersized).
