OEM rear view camera, Jumper, Boxer, Ducato BC CIT-03-2

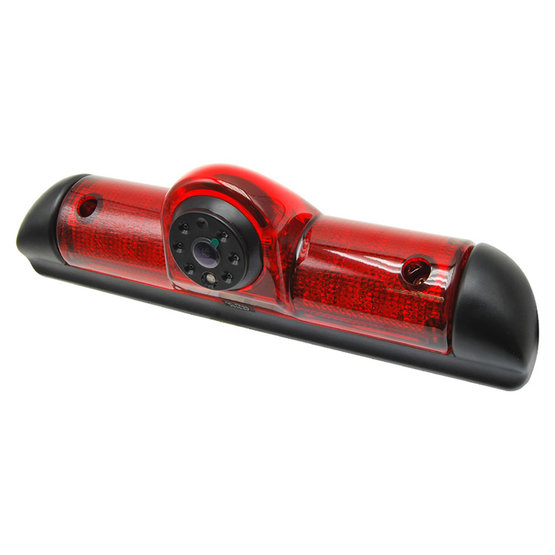

CCD rear view camera integrated in the central brake light installed above the rear hinged doors for vans Peugeot, Fiat, Citroen.

Suitable for cars:

• FIAT Ducato (2006-2014)
• FIAT Ducato [X250] [X290] (2014->)
• PEUGEOT Boxer (2006-2014)
• PEUGEOT Boxer (2015->)
• CITROEN Jumper (2006-2014)
• CITROEN Jumper (2015->)

Technical parameters:

• Sharp CCD 1/4 "sensor chip
• IR LEDs (6 pieces)
• 14 mm diameter lens
• electronic shutter: 1/50 1/10000 sec.
• minimum illumination: 0,1Lux
• signal / noise ratio:> 48 db
• TV system: NTSC
• the number of TV lines: 420
• protection: IP68
• view angle: 170°
• video Output: 1.0V / 75Ohm
• white balance: auto
• working temperature from -30 °C to + 70 °C
• power and signal cable for the camera: cca.80cm
• signal cable length 10m terminated with RCA connectors (CINCH)
• power cable length 1 m

Camera dimensions:

• base 56 x 263 mm
• pitch of mounting screws 220 mm
• depth of base 35 mm
• mounting screw M7
