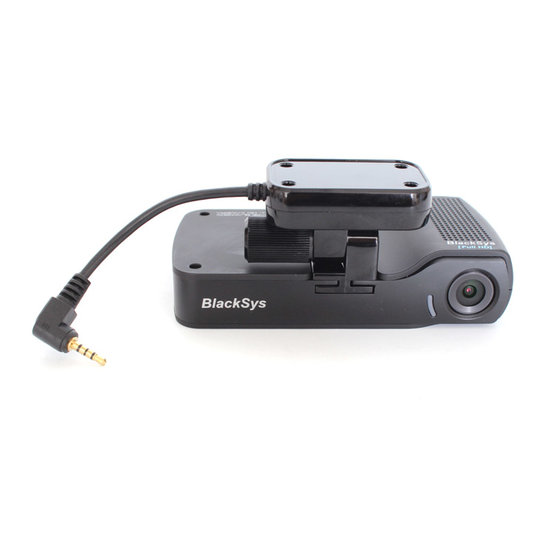

On board car camera with GPS and WiFi CH-100B

| CH-100B

Full HD Car Camera with GPS, Wi-Fi and application for smartphones, with integrated 3-axis gravity sensor and 16GB SD card included.


Full HD Car Camera with GPS, Wi-Fi and application for smartphones, with integrated 3-axis gravity sensor and 16GB SD card included.

While the camera powered via cabling for fixed installation (included), after the ignition is turned off, the camera automatically switches to the parking mode and if vibration or movement occurs, it starts to record, when the supply voltage drops below the set limit, the camera automatically turns off to protect the vehicle's battery.

Product Feature:

  • lens:                                full HD. 2.1MPx SONY EXMOR Sensor, size 1/2.9”
  • 3G sensor:                      3-axis gravity 3G-Sensor
  • WIFI module:                  802.11 b/g/n (2.4GHz)
  • application:                     mobile app. for Android 4.2 and iOS 5.0 and later
  • GPS:                               reliable and accurate SIRF5 Dual Band(GPS + GLONASS)
  • voice guide:                     if the recording mode changes (option to off)
  • storage:                           micro SD card - SDHC/SDXC  ( 8GB to 128GB capacity)
  • viewing angle:                diagonal angle(Apprx.135°) / Effective angle : horizontal(apprx.107°), vertical(apprx.55°)
  • bitrate & frame:               6Mbps 30fps,
  • video format:                   H.264(AVI), codec profile : HIP(High profile)
  • audio format:                   PCM
  • video recording:               If files are full in SD Card, It start overwriting from the oldest file
  • normal recording:            3min/5min
  • emergency recording:     10 sec. before and 20 sec after event
  • event recoding:               10 sec. before and 20 sec after event
  • motion recording:            10 sec. before and 20 sec after motion
  • audio:                               speaker, built-in microphone
  • power supply:                   DC 9V ~ 24V, 340mA (13.4V) while WIFI OFF
  • DC fuse power:                time / voltage setting available
  • operation temperature:     -20°C to 70°C
  • storage temperature:        -30°C to 80°C
  • dimension / weight:           58x100x34(mm), 78g
  • LED:                                  Red[REC], Green[Rear Camera], Blue[GPS], Yellow[WiFi], White[Parking]
  • PC viewer:                        Blacksys PC viewer
  • app. viewer:                      live view, playback, SD card setting, viewer setting, device setting
  • super cap:                         built-in super Ccap for supplying power to save video completely
  • F/W Upgrade:                   app. support F/W upgrade


Note.: - the video quality depends on the screen size and videoplayer resolution settings






Weight 0.433 kg
