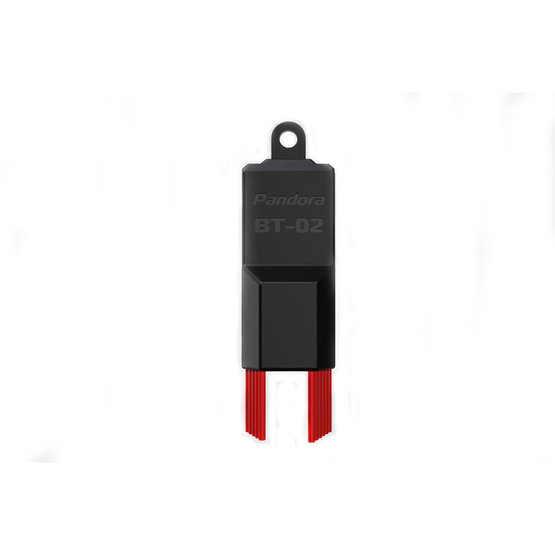

Pandora BT-02 The wireless relay

| BT-02

Universal, dual relay, equipped with Bluetooth communication. Designed for use with Pandora systems, but also as a standalone device controlled by a free mobile application.


Universal, dual relay, equipped with Bluetooth communication. Designed for use with Pandora systems, but also as a standalone device controlled by a free mobile application.

Features:

  • can be used in combination with any Pandora system with Bluetooth
  • autonomous use with the Pandora RELAY application
  • built-in dual relay with COM, NO, NC contacts (max.1A)
  • LIN BUS output for independent heating control
  • 2 programmable inputs

Technical parameters:

  • Nominal voltage: +12V
  • Current consupmtion of the relay: <1mA
  • Switching current of the built-in relay:min 10mA, nom 1A, max 2A
  • 2,4 GHz radio protocol: Bluetooth 4.2 Low Energy
  • Degree of protection: IP64
  • Operating temperatures: from -40°C to +85°C
  • Dimensions: 39x16x13mm

Mobile application



Parameters

Type Alarm accessories
Manufacturer Pandora
Weight 0.04 kg
