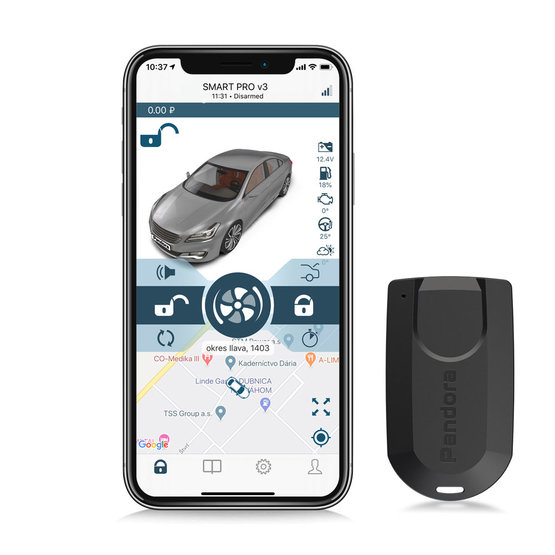

Pandora SMART PRO GSM car alarm
Pandora SMART PRO is the latest generation of GSM car alarms to protect the vehicle against unauthorized use. The built-in 4G LTE modem in cooperation with the latest generation GSM antenna guarantees connection with the vehicle even in places with minimal GSM signal coverage.
Pandora SMART PRO is the latest generation of GSM car alarms to protect the vehicle against unauthorized use. The built-in 4G LTE modem in cooperation with the dual GSM antenna guarantees connection with the vehicle even in places with minimal GSM signal coverage.
Thanks to Bluetooth 5.0, direct communication is also possible in the event of a complete failure of the GSM network, in the case of open space, up to a distance of tens of meters.
E-mark approval ECE 97.01, tested and certified by Ministry of Transport and Construction of the Slovak Republic.
GENERAL INFORMATION
System features
Base unit
- 2x FD CAN communication protocol designed for high-speed and efficient data exchange in cars
- 2x CAN BUS and 1x LIN BUS 1x BEAN BUS connectivity
- Built-in 4G LTE / GSM modem with the latest generation antenna
- Built-in 2,4 GHz module with support of Bluetooth 5.0 Low Energy protocol
- Integrated dual 3D accelerometer to detect tilt, shock and vehicle motion, with sensitivity adjustable via a mobile application
- Possibility to add a module for 868 MHz radio communication (Pandora RFM-470)
- Nano SIM card slot
- RMD-BM v2 support for BMW E series vehicle immobilizer clone
- Immobilizer cloning support for Mercedes-Benz vehicles
- Accelerometer for detecting tilt, shock and motion of a vehicle with possibility to set sensitivity
- Possibility to set output polarity
- Android and iOS applications
- Individual PIN-code to disarm ad switch off immobilizer
- Hands Free mode for arming/disarming
- Anti-hi-jack mode
- Automatic arming
- Validator mode
- Algorithms of original immobilizer bypass
- Built-in GPS/ GLONASS module of the latest generation
- Dialog coding of control commands
- Individual 128-bit encryption key
- algorithm and sensitivity controls
- Advanced process of sensor data reading, eliminating false alarm possibilities
- Built-in temperature sensor
- Software updates via built-in USB-C socket
Immobilizer tags
- Dialog coding of control commands
- Individual 128-bit encryption key
- Built-in LED indicator
- Built-in button to control over security modes
- Built-in integral accelerometer
- CR-2032 battery (not shipped with the system)
Car security zones
Pandora SMART PRO service-security system guards following independent zones:
- car doors perimeter (separate for every door)
- front hood triggers
- trunk triggers
- ignition trigger
- brake pedal button
- triggering of the shock sensor (warning level)
- triggering of the shock sensor (alarm level)
- triggering of the motion sensor
- triggering of the tilt sensor
- critically low on-board voltage
- marker lights left on notification when arming*
System set
- Base unit
- Plastic card with individual secret code
- Bluetooth tag (2x Pandora BT-775)
- 2x CR2032 batteries
- Cable with VALET button and three-colored light indicator
- Blocking relay
- Buzzer
- Temperature sensor
- Main cable
- User installation manual
Technical parameters | Value |
---|---|
Consumption | less than 7 mA |
Supply voltage | 9-15V |
Working temperature range | -40°C to+85°C |
Mobile application
Parameters
Type | Car alarms |
---|---|
Remote control | Factory remote control, Bluetooth mobile app, Online mobile app, Remote control |
Connection | CAN-BUS |
Manufacturer | Pandora |
Features | Remote start, GPS, Bluetooth, GSM |
Weight | 0.536 kg |
