Parking assistant Steelmate with CAN module PTS400-i40

Steelmate parking assistant, the values are displayed on the original HYUNDAI i40 display, designed for installation in the rear bumper. AntiHook function and automatic identification of faulty sensors is integrated.

PTS400-i40 is designed for HYUNDAI i40 VF (from r. 2011) without SuperVision system.

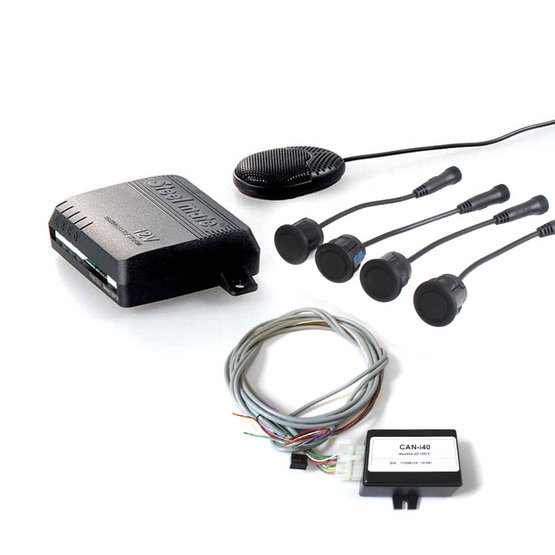

The set includes 4 pcs parking sensor, controller, CAN module, buzzer and wiring. Supply voltage 12V.

Product Features:

• Sensors with fixed mounting in the bumper, 18.5 mm in diameter
• Sensors can be supplied also in other body color (silver, white)
• Audible (changing the frequency of the beep) notify the obstacle position
• Visual signalisation displayed on the original display
• Excellent coverage of the wide area behind the vehicle
• If there is an obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• Autodetection (automatic identification of faulty sensor)
• Unique technology attachment
• Sensors with 30cm cable with waterproof connector, ensuring easy replacement sensor if necessary
• Unique technology programming each sensor if permanent barriers mounting to a car (spare wheel, towing, frame, ...)
• Cable length to sensor 2.2m

displayed on the dashboard of the vehicle
