Parking sensors Steelmate PTS400M7

| PTS400M7

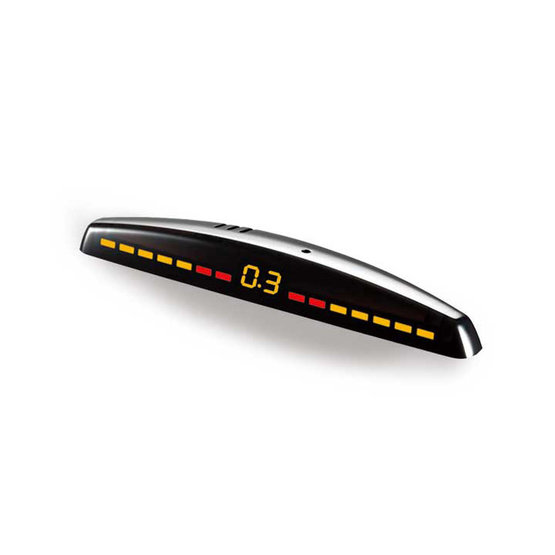

Rear parking system STEELMATE PTS400EX with dual-color LED display M7 with digital number. Suitable for mounting on the vehicles dashboard.

Discontinued Prejsť na nový model

Parking assistant STEELMATE with 4 sensor and LED display M7 with numeric two-color indicator designed for installation into the rear bumper of the vehicle. The display is designed for mounting on the dashboard or rear mirror.

System Description:

  • acoustic and visual alarm (LED + number)
  • bicolored LED display M7
  • fast obstacle detection
  • automatic detection of damage sensors
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters:

  • supply voltage: 12V DC
  • working power: <2.5 W
  • detection range: 0.1 ~ 2.5 m
  • display range: 0.3 ~ 2.5 m
  • operating temperature: -40 ? ~ 80 ?
  • buzzer: 70 ~ 90 db
  • sensor diameter 18,5mm


  • 4pcs parking sensor
  • LED display M7
  • control unit
  • wiring
  • drill
  • manual
  • warranty card


Power Suply 12VDC
Number of sensors 4 sensors
Manufacturer Steelmate
Display LED display
Sensors colour black matt
Weight 0.75 kg
