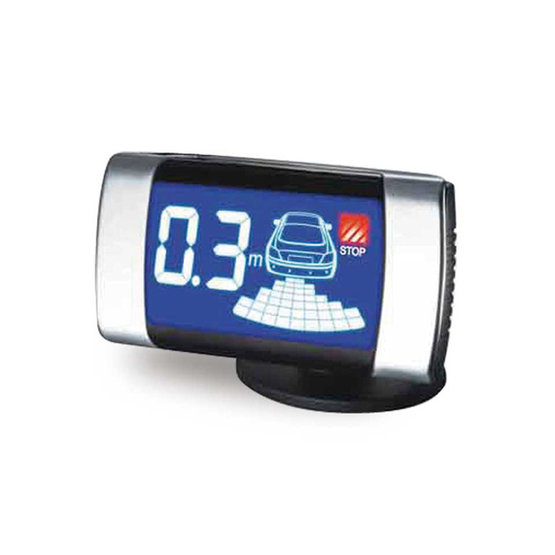

Parking sensors Steelmate PTS400V5

Rear parking system STEELMATE PTS400EX with LED display V5. Suitable for mounting on the vehicles dashboard.

System Description:

• acoustic and visual alarm (LED + number)
• V5 LED display
• fast obstacle detection
• automatic detection of damage sensors
• when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• function Antihook - measuring shift +20 cm (reserve, drawing, frame, ...)

Technical parameters

• supply voltage: 12V DC
• working power: <2.5 W
• detection range: 0.1 ~ 2.5 m
• display range: 0.3 ~ 2.5 m
• operating temperature: -40  ~ 80
• buzzer: 70 ~ 90 db
• sensor diameter 18,5mm

Package

• 4pcs parking sensors
• V5 LED display
• control unit
• wiring
• drill
• manual
• warranty card
