Steelmate parking assistant, LCD, 8x sensor PTS810V7 METAL

| PTS810V7 METAL

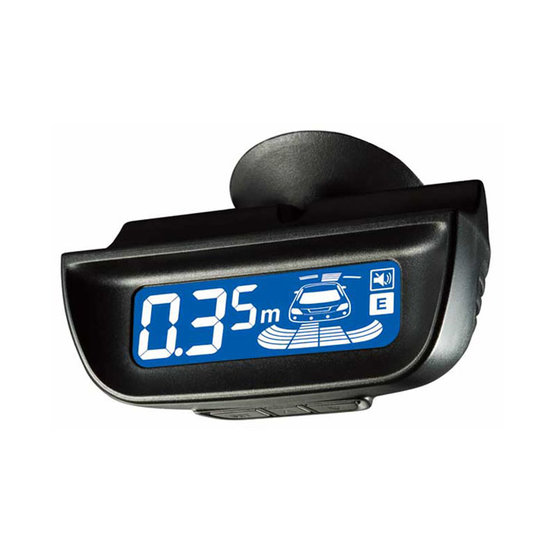

Parking assistant STEELMATE with 8 sensors designed for metal bumpers, with only one control unit, designed for installation in the front and rear bumper, with V7 LCD display with numeric value and graphic signalisation, display location on the windshield. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

Steelmate parking assistant, LCD, 8x sensor PTS810V7 METAL

Discontinued

Parking assistant STEELMATE with 8 sensors designed for metal bumpers, with only one control unit, designed for installation in the front and rear bumper, with V7 LCD display with numeric value and graphic signalisation, display location on the windshield. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

System Description:

  • acoustic, voice and visual alarm
  • sensors are mounted to the rear and front bumper
  • automatic detection of damage to sensors (selftest)
  • if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
  • Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
  • sensitivity setting, in 2 levels
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washer 4° - not removable
  • installation hole 18.8 mm
  • sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
  • supply voltage: 12V DC
  • working power: <2.5W
  • cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters

Contents:

  • parking sensors 8 pieces
  • display 1x
  • control unit 1x
  • cabling
  • drill
  • instruction manual
  • warranty card

Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!



Parameters

Weight 1.558 kg
