Steelmate PTS410L5 parking assistant

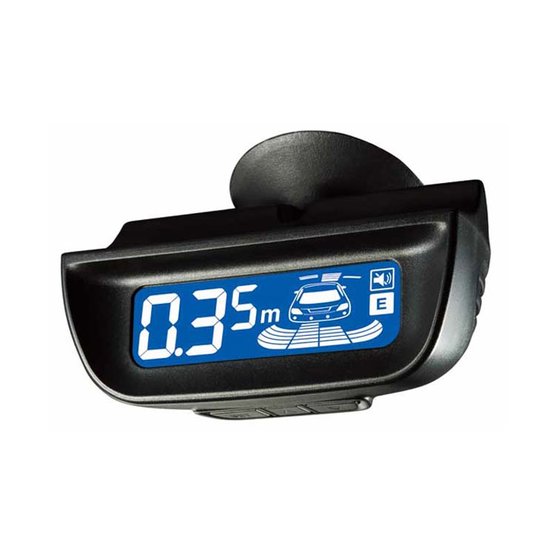

Parking assistant STEELMATE with 4 sensors, designed for installation in the rear bumper, with L5 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
PTS410L5 parking assistant could be supplied with theese sensor types: white, silver, shiny, metal, INT (inner black 25mm), BTI white (inner white 16mm) , BTI silver (inner silver 16mm), BTI (inner black 16mm).
Discontinued
Parking assistant STEELMATE with 4 sensors, designed for installation in the rear bumper, with L5 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
System Description:
- acoustic, voice and visual alarm
- automatic detection of damage to sensors (selftest)
- if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
- Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
- sensitivity setting, in 2 levels
- excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
- angle washers 0°, 4°, 10° in the package
- sensor core diameter 14 mm
- installation hole 18.8 mm
- sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
- supply voltage: 12V DC
- working power: <2.5W
- cover range: 0.3 to 1.5 meters
Content:
- parking sensors 4 pieces
- display 1x
- control unit 1x
- cabling
- drill
- instruction manual
- warranty card
Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!
Parameters
Sensor type | Basic |
---|---|
Manufacturer | Steelmate |
Display | LCD display |
Sensors colour | black matt |
Power Suply | 12VDC |
Weight | 0.85 kg |
