Steelmate PTS410M5-F front parking assistant

| PTS410M5-F

Front parking assistant Steelmate with LED display M5 two-colour diodes, includes new control unit that allows you to adjust the sensitivity in 2 levels, and to adjust the delay off time. The system is designed for installation in the front bumper of the vehicle.

PTS410M5-F parking assistant could be supplied with theese sensor types: white, silver, shiny, metal, INT (inner black 25mm), BTI white (inner white 16mm) , BTI silver (inner silver 16mm), BTI (inner black 16mm).

Parking assist system is an ultrasonic distance monitoring system. It electronically detects the area in front of your vehicle while parking, and alerts you if the system detects an obstacle. The system will show the accurate distance in meters. This product is 4-sensor systems for front bumper protection. They can also work as 2-sensor systems. They are ideal for cars with front metal bar.

System Description:

  • sensors with fixed installation in the front bumper
  • fast detection of obstacles
  • acoustic (changing frequency beeping) and visual notification of the obstacle position
  • if the obstacle is at a distance of 30 cm from the vehicle, it signalling by a continuous tone

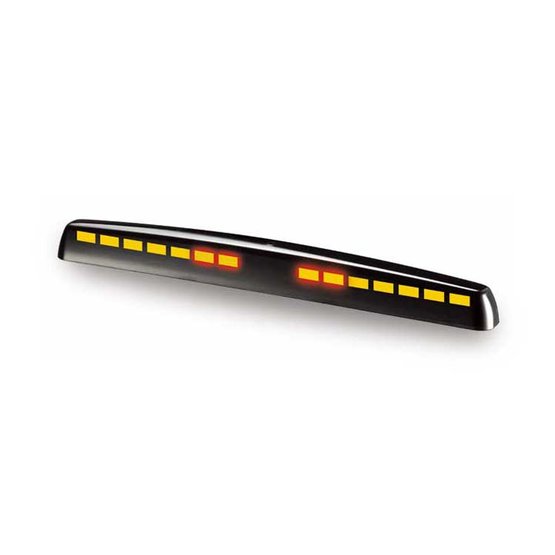

  • 2 colour M5 display with digits
  • control unit with switches to set the sensitivity and delay time off
    • 2 sensitivity levels (high and low)
    • delay time for 8s or 20s after releasing the brake pedal
  • self test function
  • cable length to the sensor 4.5 m
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers in the package 0°, 4°, 10°
  • sensors core diameter 14 mm
  • sensors diameter 18.5 mm
  • sensors with 10 cm cable with waterproof connector which ensures easy replacement of the sensor, if necessary


  • parking sensors 4 pieces
  • angle washers
  • control unit
  • display
  • cabling
  • drill
  • instruction
  • warranty card


Product type Front sensors
Display LED display
Sensor type Basic
Manufacturer Steelmate
Sensors colour black matt
Power Suply 12VDC
Weight 1.03 kg
