Steelmate PTSV401 parking assistant with camera

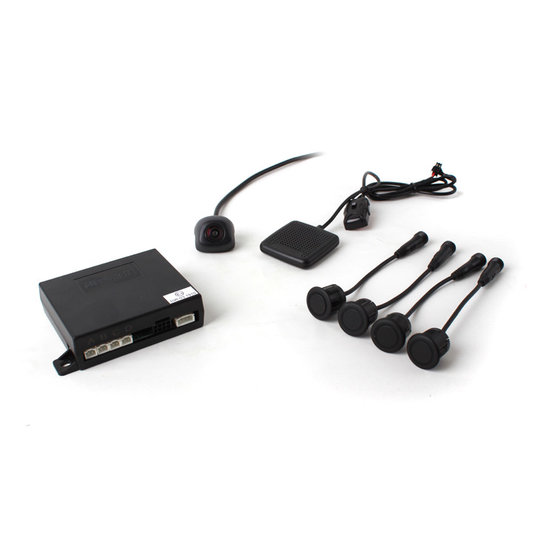

Rear parking assistant STEELMATE with camera, 4 black sensors and RCA output for monitor or multimedia radio unit. The system is fitted with self test function, buzzer with volume level control button. Set includes 4 pieces of ultrasonic sensors, control unit, buzzer and wiring. The unit is for vehicles with 12V DC only.

System Description:

• sensors with fixed assembly to the bumper
• fast obstacle detection
• sound alarm (beeps changing frequency) indicates the position of obstacles
• online rear view picture, if connected to a monitor/radio unit with AV video input
  • driver watching the camera picture on the monitior (not included in the package)
• volume adjustable in 3 levels, the switch on buzzer cable
• excellent coverage of the entire area behind the vehicle
• when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• auto detection (automatic identification of the defective sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• adjustable volume directly on the buzzer body (3 levels)

Technical parameters:

• Supply voltage: 12V DC
• Working power: <2.5 W
• Detection range: 0.1 ~ 2.5 m
• Operating temperature: -30°C to + 80°C
• Buzzer: 70 ~ 90 db
• Sensor diameter 18,5mm
• Sensor wire length 2,2m
