Thinkware iVOLT Mini Power supply 4.500 mAh

| iVOLT Mini

Extend the operation time in parking mode of your dash cam with the iVolt Mini external battery. It allows the dashcam to stay in parking mode for up to 20 hours more. (or in 16 hours when using also with the rear camera).

The iVolt Mini battery is a device designed for fixed installation. It connects directly to the fuse box, thanks to which it recharges while driving. It is compatible with all THINKWARE car cameras. The battery requires the camera to be installed using the hard mount cable included with some dash cams - please check.

Show price

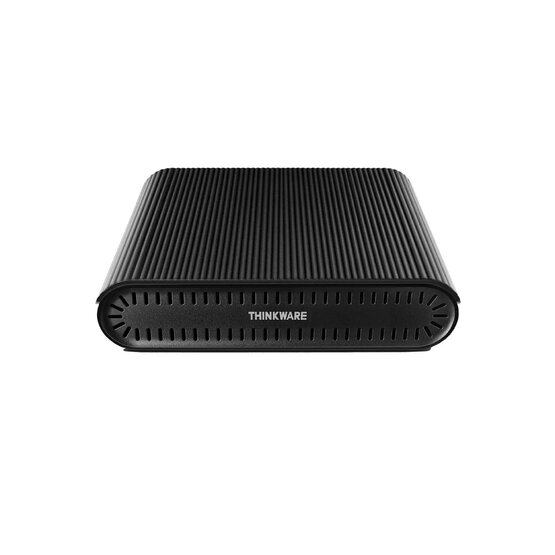

Thinkware iVOLT Mini Power supply 4.500 mAh

Extend the operation time in parking mode of your dash cam with the iVolt Mini external battery. It allows the dashcam to stay in parking mode for up to 20 hours more. (or in 16 hours when using also with the rear camera).

The iVolt Mini battery is a device designed for fixed installation. It connects directly to the fuse box, thanks to which it recharges while driving. It is compatible with all THINKWARE car cameras. The battery requires the camera to be installed using the hard mount cable included with some dash cams - please check.

.

Parameters:

  • input voltage / current: 12.0 V – 15.5 V / max. 10 A
  • output voltage / current: 12.0 V – 14.6 V / max. 2.0 A
  • charging voltage / current: 14.6 V / 7 A (direct connection)
  • approximate charging time: 45 minutes (with direct connection to the fuse box)
  • operating time (approx.): 1-channel mode – 20 hours / 2-channel mode – 16 hours
  • battery: LiFePO4 (Lithium Iron Phosphate)
  • battery capacity: 12.8 V, 4,500 mAh, 57.6 Wh
  • dimensions (W x D x H): 165.4 x 131.2 x 36.8 mm
  • weight: 0.95 kg
  • operating temperature – charging: 0 °C ~ 45 °C
  • discharging: -10 °C ~ 60 °C
  • (cell surface temperature must not exceed 80 °C)

.

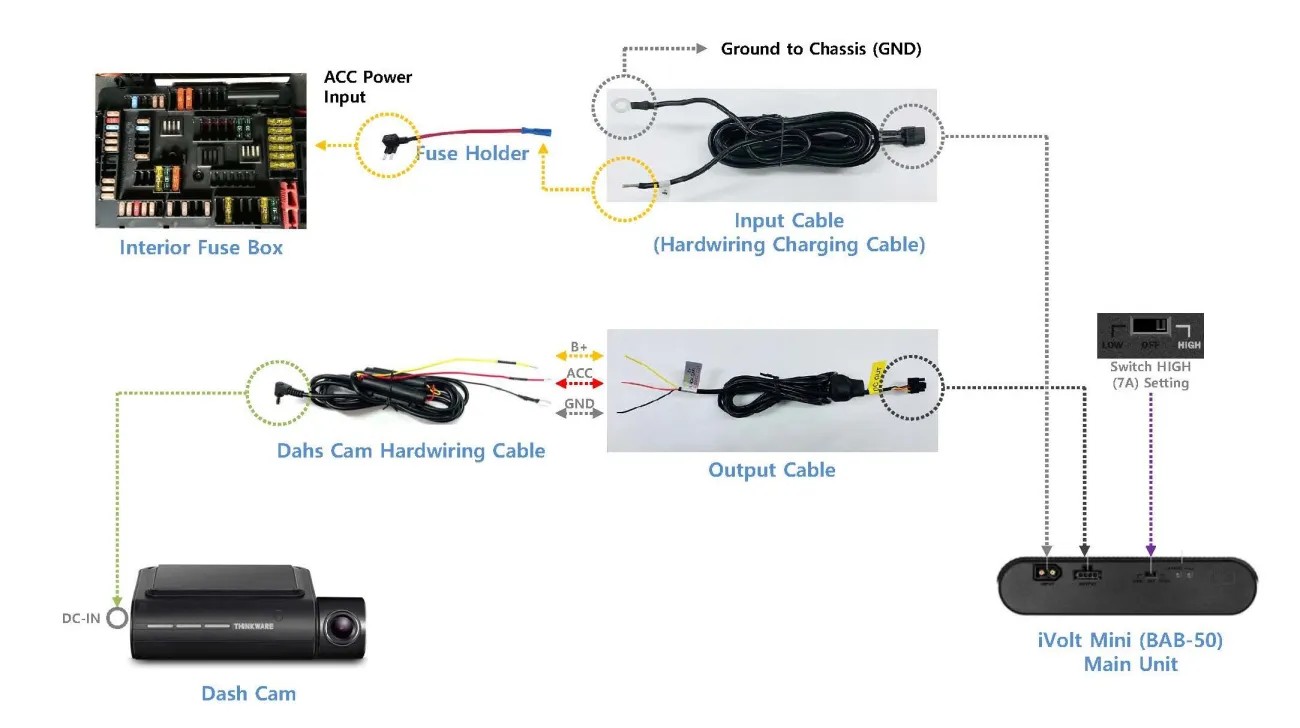

Connection Schema:

.

Included:

  • external battery
  • input cable (hardwired power cable)
  • output cable
  • fuse adapter (3 types)
  • fuse (3 types)
  • Velcro strap (2 pieces)
