Thinkware SIDE CAM Additional exterior side camera
|
SIDE CAM
SIDE CAM is a low-profile exterior rear-view camera that fits neatly on either side of the vehicle to cover the blind spot and record events in FullHD resolution. Its body with IP68 protection is strong enough to withstand harsh weather conditions, so it will do its job even in the rain or in the sun.
SIDE CAM is a low-profile exterior rear-view camera that fits neatly on either side of the vehicle to cover the blind spot and record events in FullHD resolution. Its body with IP68 protection is strong enough to withstand harsh weather conditions, so it will do its job even in the rain or in the sun.
Features:
- video resolution: Full HD 1080p
- waterproof and dustproof – robust body, IP68 protection
- clear and detailed images, records true balanced colors
- compatible with car cameras F200PRO or T700 - directly,
- or even through the MB100 splitter as part of a multi-lens system
- cable length – 1.5m Cable + 3m Cable

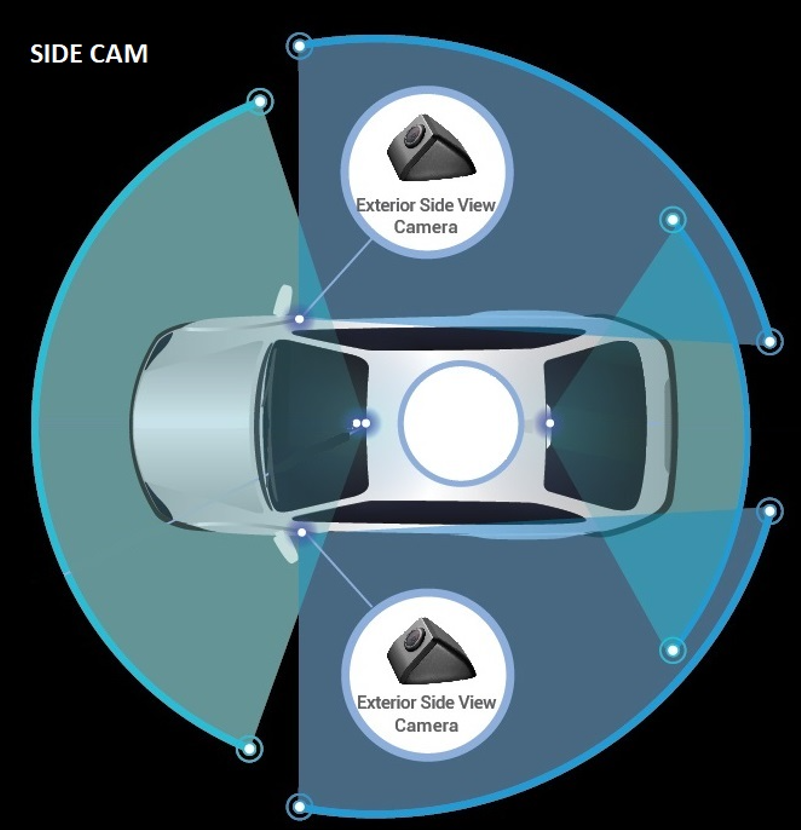

Location in a vehicle:
Parameters:
- video resolution: Full HD (1920 x 1080)
- sensor resolution: 2.12 MP Pixelplus
- frame rate: 30 fps
- viewing angle: 129° (diagonal)
- power supply: DC 5V
- current consumption: 140 mA
- dimensions (WxDxH): 61.05 x 30.5 x 25.0 mm
- weight: 57.0 g (0.126 lb)
- cable length: 1.5 + 3.0 m
- operating temperature: -10°~ 60°C
Included the package:
- camera with cable 1.5m 1x (4pin slim male connector)
- cable 3m 1x (4pin slim connector female / jack 2.5mm)
Parameters
| Weight | 0.144 kg |
|---|
