Two-way car alarm Magicar M881 A CAN BUS

MAGICAR | M 881 A CAN BUS

The MAGICAR M 881 A CAN BUS is 2-way car alarm with LCD remote controller and CAN BUS interface (READ and WRITE). All imported information about vehicle are showed on display for better control of a vehicle. This version is without remote start function.


Discontinued

The MAGICAR M 881 A CAN BUS is branded article 2-way car alarm with LCD remote controller, enhanced design and function is available. All imported information about vehicle are showed on display for better control of a vehicle. This version is without remote start function.
The Magicar M881 A is primary car alarm model of brand MAGICAR, marked as 88x. This car alarm is building on base of previous modern and time-proved car alarm Magicar M871A.

This version of car alarm includes CAN BUS module, that provide reading and writing data on CAN BUS of vehicle. With this module is easy and quick realize installation of car alarm into vehicles. The module providing information about doors, trunk,hood, bonnet, ignition, foot brake, engine running or can send data for lock/unlock doors,closing windows, open the trunk, flashing lights or hooting of klaxon. Moreover the car alarm is possible activate or deactivate by original remote controller of vehicle. It is necessary verify support for your vehicle. See List of Supported Vehicles on our web sites.

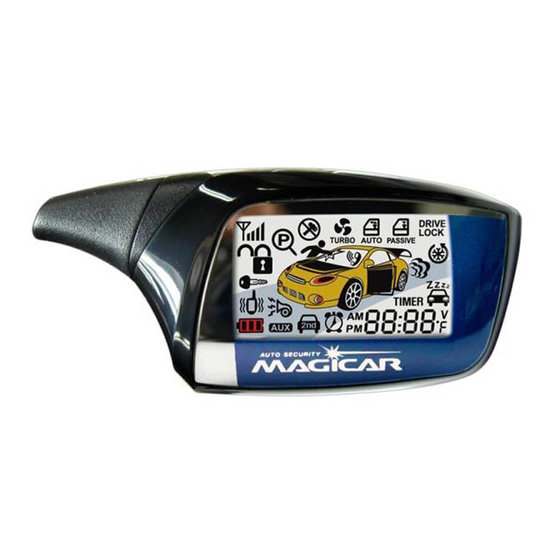

Set includes enhanced 2way remote controller. On the display are showed information like: status car (lock/unlock), actually active function ( Auto, Passive, Drive Lock, Mute), comfort function (current time, alarm clock, temperature, car battery voltage, remote battery voltage). When the car alarm is triggered, the display shows cause of trigger (door, hood, bonnet, shock sensor, additional sensor). Moreover during alert the remote controller beeping, vibrating and blinking by red light.
The remote controller is designed by black/blue/silver colors.

Additional new features of remote controllers for Magicar M881A:

  • during normal operations backlight is blue light
  • during alert backlight is changed from blue to red light
  • setting function AUTO is now simplified
  • information about remote learn process (when new remote controller are added into car alarm) is showed as ID LEARN text on display.
  • when remote start running and extended the remote time function is chooses, the display shows START AGAIN text
  •  enhanced RF communication between main unit and remote controller

CAN BUS

  • support for 1 way conection
  • support for 2 way connection
  • Read and write data

Remote controller:

  • set includes 1 pcs 2-way remote controller with 4 buttons
  • max. 3 controllers into system
  • signal from car alarm is transmitted onto all learned remote controllers
  • current time
  • alarm clock
  • vibration on/off
  • temperature
  • car battery voltage / remote battery voltage
  • battery power save mode
  • button lock function
  • strength of RF signal
  • max. range around 2000 meters

Sensors:

  • two zone shock sensor (into set)
  • one zone additional sensor (as Ultra)
  • bypass sensors by remote
  • bypass sensor when AUX is activated (optional)

Inputs/Outputs:

  • additional one zone sensor input
  • door, hood, bonnet input
  • start-kill output
  • light (NO/COM relay) output / sequential function optional
  • two auxiliary output with adjustable pulse length
  • trunk open (NO/COM relay) output
  • lock/unlock (NC/NO/COM relay ) output (0.8s, 4s, 15s, double pulse)
  • parking light input
  • foot brake input

Safety features:

  • monitoring of open doors
  • memory state at power loss, memory alarm
  • quite / loud activation
  • rearming
  • passive arming
  • PANIC function
  • dome light delay
  • emergency deactivation by PIN code
  • valet mode

Comfort features:

  • status of car on remote display
  • flashing when the doors is open
  • flashing when the hood is open
  • call for vehicle owner - RPS module
  • 3 level sensitivity of RPS sensor
  • activation/deactivation of system when approaching/leaving to control the vehicle (AUTO function)
  • drive lock (lock by ignition)

Technical parameters:

  • type of siren: no back-up /12V/15W
  • operational temperature: -40°C — +85°C
  • power supply: 12 - 14 V
  • type of RF communication: FSK modulation/hopping code
  • RF power: 10 mW
  • operational frequency: 433,92 MHz

Parameters

Manufacturer Magicar
Connection CAN-BUS
Remote control Two-way remote control
Features GSM
Weight 1.46 kg
