Vehicles

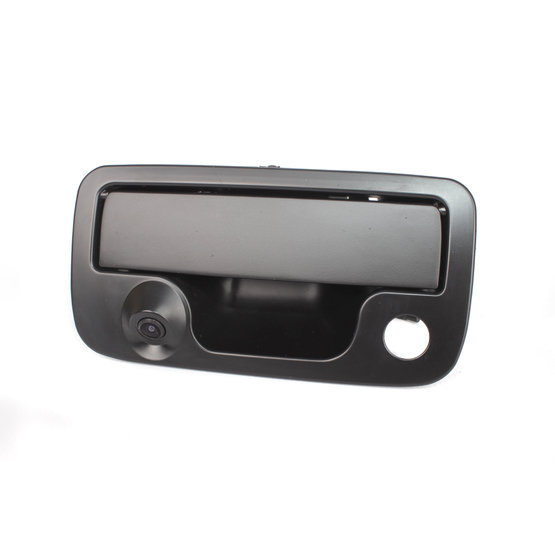

BC AMAROK Camera in handle VW Amarok
OEM rear view camera for VW Amarok (13-) for installation in place of the 5-door door handle.
_bc_amarok/1-bc-amarok.jpg "BC AMAROK Camera in handle VW Amarok")
_bc_amarok/2-bc-amarok.jpg "BC AMAROK Camera in handle VW Amarok")
_bc_amarok/4_bc_amarok.jpg "BC AMAROK Camera in handle VW Amarok")
_bc_amarok/3-bc-amarok.jpg "BC AMAROK Camera in handle VW Amarok")
Discontinued
OEM rear view camera for VW Amarok (13-) for installation in place of the 5-door door handle.
Suitable for the car models:
- VW Amarok (13-)
Technical Parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: PAL (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passenger |
| Signal | analog |
| Connectors | CVBS-RCA |
| Brand of the car | VW |
| Model of the car | Amarok |
| Weight | 0.862 kg |
Manuals and support
Need help?
Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
