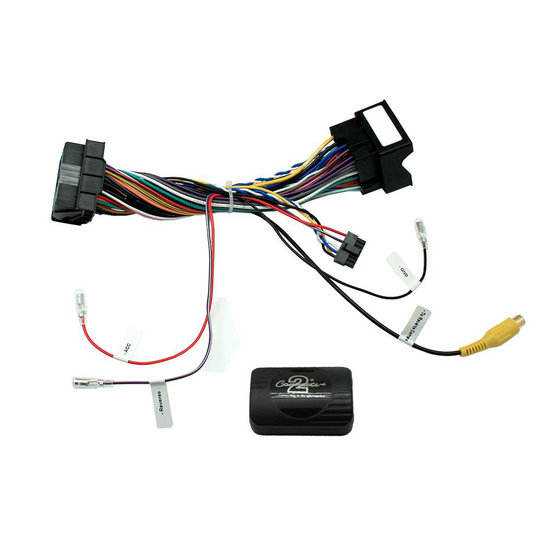

Parking camera video input BCMI-VW GOLF7

Video input for connecting aftermarket parking camera for Volkswagen Golf VII with MIB / MIB STD2, Discovery Pro, Discovery Media.
Features:

• Input signal only for NTSC cameras
• Automatic switching (requires drive encoding)
• The original OPS parking system must be installed

Suitable for vehicles with MIB Standard / High navigation system.

• Volkswagen
  • Golf VII
  • Caddy (15-)
  • Passat (14-)
  • Sharan (15-)
  • T-6 (15-)
  • Touran (15-)
• Seat
• Škoda

Designed for systems:

• Seat: Media System Plus MIB
• Škoda: Bolero MIB Std, Amundsem MIB Std, Columbus MIB High, Amundsen MIB STD2, Bolero MIB STD2
• VW: Composition Media (MIB), Discovery Pro (MIB), Composition Media (MIB STD2), Discover Media (MIB STD2)

* Not compatible with Composition Media with the following numbers:

• 3Q0035820A
• 3Q0035820
• 3Q0035819A
• 3Q0035819
• 3Q0035812
• 5G0035820A
• 5G0035820
• 5G0035819A
• 5G0035819
• 5G0035812

Note. After the installation, it may still be necessary to enable the parking camera via vehicle diagnostics (via VCDS, VagCom, ...)
