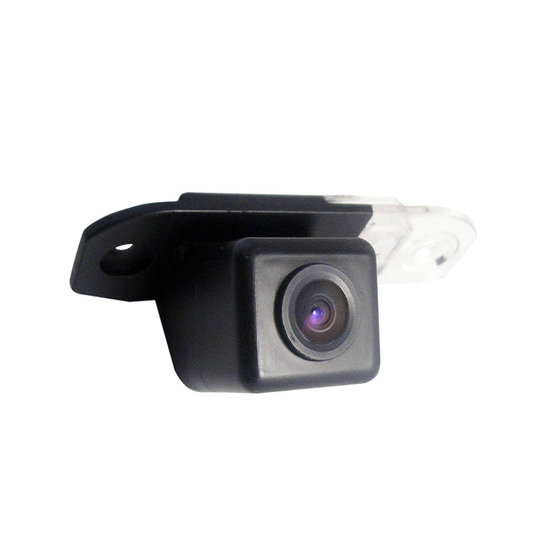

BC VLV-01 rearview camera Volvo

| BC VLV-01

OEM parking camera for installation in the lamp for lighting of rear license plate.


Discontinued

OEM parking camera for installation in the lamp for lighting of rear license plate.

Suitable for the car models:

  • VOLVO S40 (2004->)
  • VOLVO V50 (2004->)
  • VOLVO V60 (2010->)
  • VOLVO V70 (2007->)
  • VOLVO S80 [AS] (2006-2009)
  • VOLVO XC60 (2008->)
  • VOLVO XC70 (2008->)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 27 x 78 mm
  • hole pitch for screws 63 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Signal analog
Plugs CVBS-RCA
Model of the car V50, V60, V70, S80, XC60, XC70, S40
Brand of the car Volvo
Use OEM
For cars passanger
Weight 0.41 kg
